- mpn46437-3005
- brandname: Molex
- manufacturername: Molex

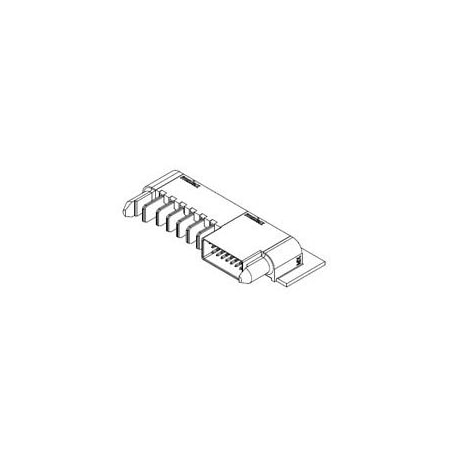

46437-3005, Conn Power PL 6Power/24Signal POS 5.5mm/2.54mm Press Fit RA Thru-Hole 84 Terminal 1 Port Extreme Ten60Power Tray (5 Items)
- Brand: Molex / Waldom
- PartNumber: 46437-3005
- Model: 46007-1106
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| (p)ower-(s)ignal Config. | 6p - 24s |
| Category | Connectors, Interconnec. |
| Circuits (Loaded) | 30 |
| Circuits (maximum) | 30 |
| Color | Black |
| Color - Resin | Black |
| Connector Style | EXTreme Ten60Power |
| Connector Type | Plug, Male Pins and Bla. |
| Connector Usage | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0?in (0.76?m) |
| Contact Layout, Typical | 24 Signal, 6 Power |
| CSA | LR19980 |
| Current - Maximum per C. | 2.5A, 60.0A |
| Current Rating | 2.5 A |
| Current Rating (Amps) | - |
| Description | TEN60 RA PLUG ASSY |
| Detailed Description | 30 Connector Plug, Male. |
| Digi-Key Part Number | 2266-46437-3005-ND |
| Durability (mating cycl. | 200 |
| Family Name | EXTreme Ten60Power |
| Features | Board Guide, Guide Pin |
| Flammability | 94V-0 |
| Guide to Mating Part | Yes |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 46437-3005 |
| Mated Height | 18.00mm |
| Material - Metal | Copper |
| Material - Plating Mati. | Gold |
| Material - Plating Term. | Tin |
| Material Flammability R. | UL94 V-0 |
| Mfr | Molex |
| Mounting Type | Through Hole, Right Ang. |
| Number of Circuits | 30 |
| Number of Columns | - |
| Number of Positions | 30 |
| Number of Positions Loa. | All |
| Number of Rows | 1, 3, 1, - |
| Operating Temperature | -40?C ~ 105?C |
| Orientation | Right Angle |
| Package | Box |
| PC Tail Length | 2.84mm |
| PCB Locator | Yes |
| PCB Thickness - Recomme. | 1.58mm |
| Pitch | - |
| Pitch - Mating Interface | 2.54mm, 5.50mm |
| Plating Material | Gold |
| Polarized to Mating Part | Yes |
| Polarized to PCB | Yes |
| Product Status | Active |
| Series | EXTreme Ten60Power 4643. |
| Temperature Range - Ope. | -40? to +105?C |
| Termination | Solder |
| Termination Interface: . | Through Hole |
| Voltage - Maximum | 600V AC / 250V DC |
| Voltage Rating | - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Waldom | MOLEX 46437-3005 | 6.69 | 10 | 363 | | MOLEX | | 6.69 @ 25 |
 | jensentools.com | 10190366 | 8.47 | 1 | 323 | | Molex | | 8.47 @ 25 |
| Newark | 22T8487 | 9.59 | 500 | 25 | | MOLEX | | 9.59 @ 500 |
 | Digi-Key | 14733967 | 9.73 | 10 | 383 | | Molex | | 9.73 @ 25 |
| us.rs-online.com | 71463357 | 12.03 | 1 | 25 | | Molex Incorporated | | 12.03 @ 25 |
 | Zoro | G2078830 | 91.5 | 10 | 25 | | Molex | | 91.5 @ 25 |
