Molex / Waldom 90122-0775

mpn90122-0775
brandname: Molex Incorporated
manufacturername: Molex Incorporated

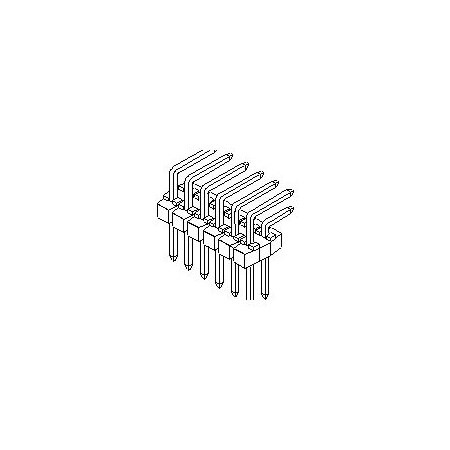

90122-0775, Conn Unshrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole C-Grid III Tray (5 Items)

90122-0775, Conn Unshrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole C-Grid III Tray (5 Items)

zoom

Brand: Molex / Waldom
PartNumber: 90122-0775
Model: 90122-0775
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	Automotive, General Pur.
Color	Black
Connector Type	Header, Breakaway
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Plating Thickne.	0.381 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Fastening Type	Push-Pull
Features	Breakaway, -
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.242" (6.14mm)
Insulation Material	Polyester, Glass Filled
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	125?C
Max. Voltage	350V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Contacts	30
Number of Positions	30
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package Quantity	1
Part Status	Active
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Shrouding	Unshrouded
Standards	UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 90122-0775	3.46	20	1252		MOLEX		3.46 @ 25
	Verical	90122-0775	3.49	10	829		Molex		3.49 @ 25
	Newark	26M7900	4.0	1	2088		MOLEX		4.0 @ 25
	jensentools.com	10198196	4.61	1	1254		Molex		4.61 @ 25
	Digi-Key	WM50030-30-ND	5.0292	1	25		Molex		5.0292 @ 25
	Zoro	G4050268	5.25	20	25		Molex		5.25 @ 25
	Hotenda	H4311401	5.3644	1	25		Molex		5.3644 @ 25
	Mouser	538-90122-0775	5.5	1	25		Molex		5.5 @ 25
	AmazonTP	B07QPC7WYX	46.78	1	25	1	Molex / Waldom		46.78 @ 25
