NKK Switches M2025ES1W01

mpnM2025ES1W01
brandname: NKK Switches
manufacturername: NKK Switches

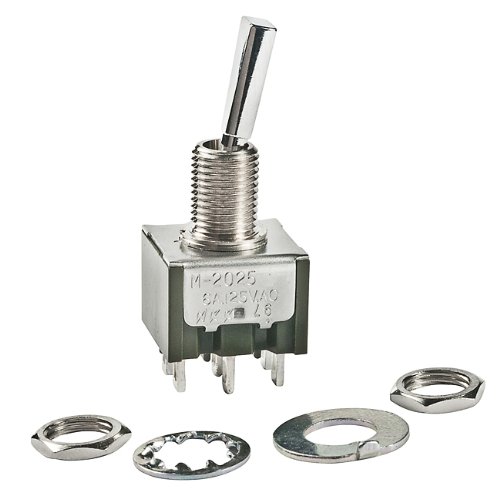

NKK Switches Part Number M2025ES1W01

NKK Switches Part Number M2025ES1W01

zoom

Brand: NKK Switches
PartNumber: M2025ES1W01
Manufacturer: NKK Switches
Label: NKK Switches

Attributes

Key	Value
Actuator Length	11.40mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Flatted Lever, Flatted
Base Product Number	M2025ES
Body Style	Miniature
Bushing Thread	1/4-40
Category	Switches
Circuit	DPDT
Contact Form	DPDT
Current Rating	6 A
Current Rating (Amps)	6A (AC), 3A (DC)
Dielectric Strength	1500 VAC
Electrical Life	25,000 Cycles
Family Name	M Series Family
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (N.	-
Ingress Protection	-
Mfr	NKK Switches
Mounting Hole Size	0.256 in
Mounting Type	Panel Mount
Number of Poles	2
Number of Positions	2
Operating Temperature	-30?C ~ 85?C
Operation	ON-NONE-(ON)
Package	Bulk
Panel Cutout Dimensions	Circular - 6.50mm Dia
Part Status	Active
Series	M Series, Miniature Tog.
Switch Function	On-Mom
Termination	Solder Lugs
Termination Style	Solder Lug
Type	Toggle
Voltage Rating	250 V
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	70192109	6.35	1	In Stock		NKK Switches		6.35 @ 1
	Digi-Key	1007132	9.0735	1	In Stock		NKK Switches		9.0735 @ 1
	AmazonSC	B005TB08RA	13.75	1	In Stock		NKK SWITCHES		13.75 @ 1
