NTN UCFU-1M

B013C9BT28

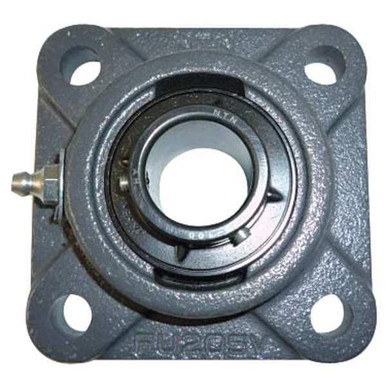

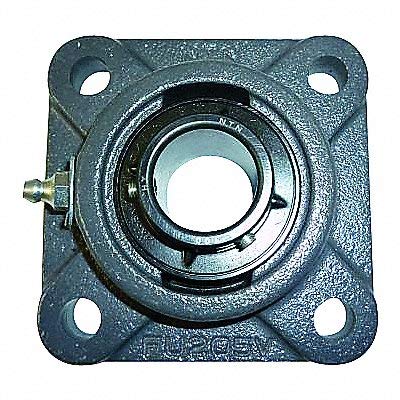

Flange Bearing, 4-Bolt, Ball, 1" Bore

Flange Bearing, 4-Bolt, Ball, 1" Borezoom

Attributes

Key Value
Back Side to Center Wid.0.752 in
Bearing Housing Materia.Cast Iron
Bearing Insert Material52100 Chrome Steel
Bearing Insert TypeBall
Bolt Hole Center-to-Cen.2 3/4 in
Bolt Size3/8 in
Bore Dia.1 in
Bore Diameter1 in
BrandNtn
Current Stock22
Dimension A1 3/16 in
Dimension Ao1 17/32 in
Dimension B1 11/32 in
Dimension D1 in
Dimension J2 3/4 in
Dimension L3 25/32 in
Dimension N29/64 in
Dimension S9/16 in
International ShippingNo
Lead TimeExpected to ship in 1-2.
Mount Hole Center-to-Ce.2.75 in
Mount Hole Center-to-Ce.2.75 in
Mount Hole Size0.453 in
Mounting Bolt Size7/16 in
MpnUCFU-1M
Overall Height1 17/32 in
Overall Length3 25/32 in
Overall Width3 25/32 in
Shaft Locking TypeSet Screws
SKUZO-G0856527
SubCategoryPower Transmission

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comUCFU-1M69.053In StockNTN1.069.05 @ 3
AmazonSCB013C9BT2869.081In StockNTN69.08 @ 1
thumbzoomZoroG085652771.29144Ntn2.071.29 @ 1
thumbzoomsimsupply.comZO-G085652788.69122Ntn88.69 @ 1
thumbzoomRaptor SuppliesAE6HGR137.7692551In StockNTN137.769255 @ 1
