Schneider Electric 9001KS11K3H2

B00CON9JX0

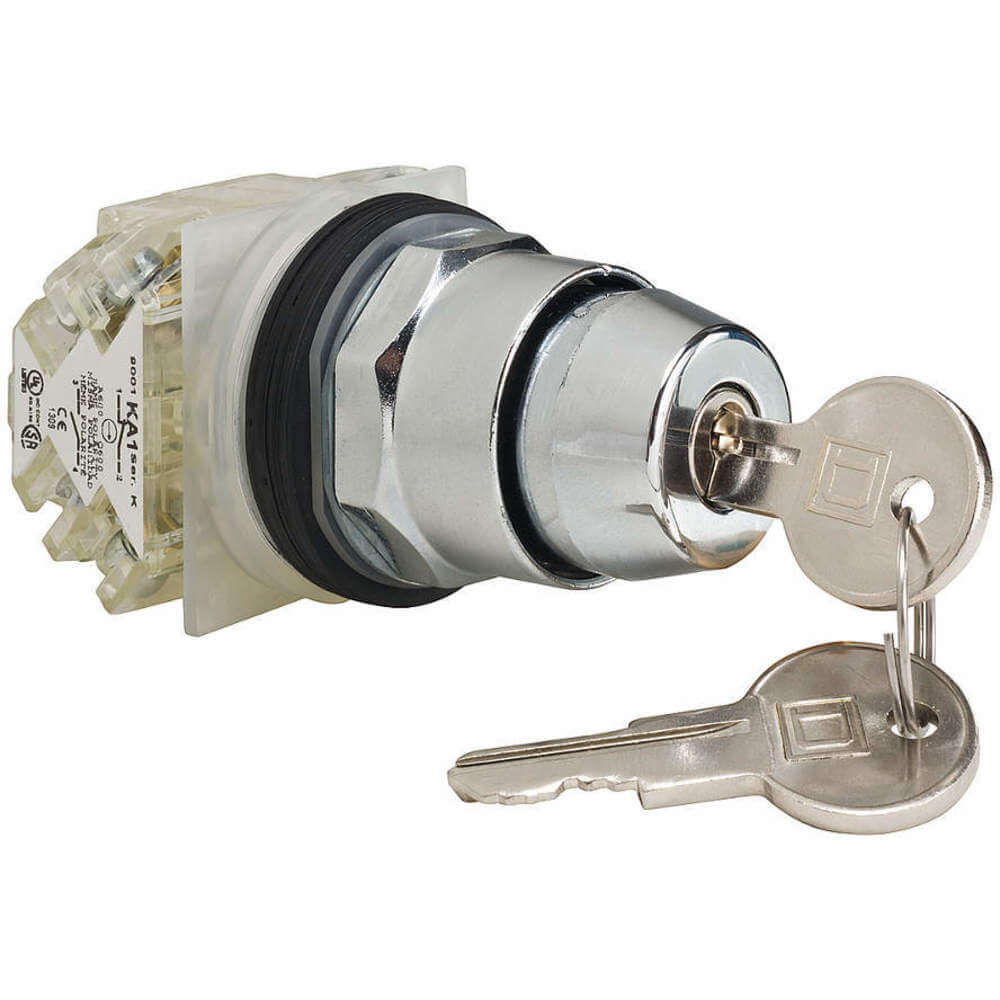

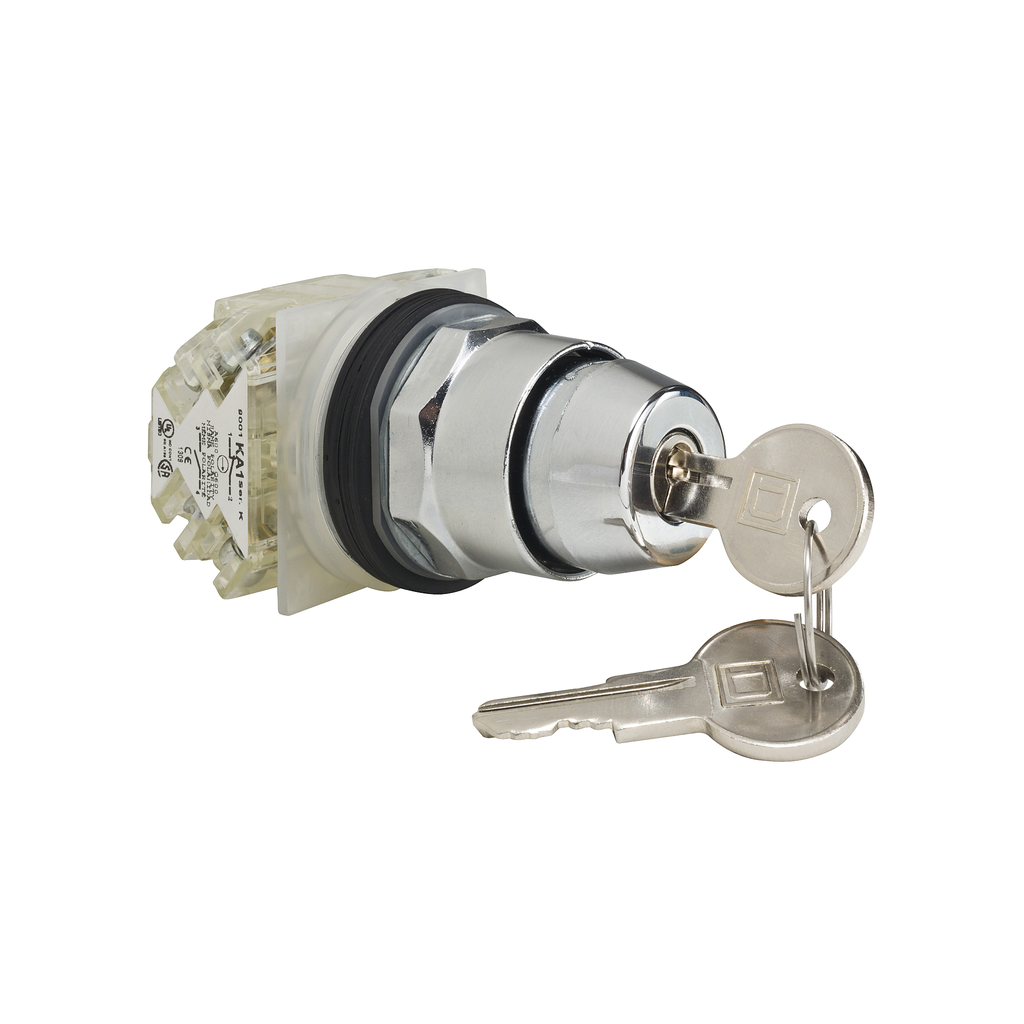

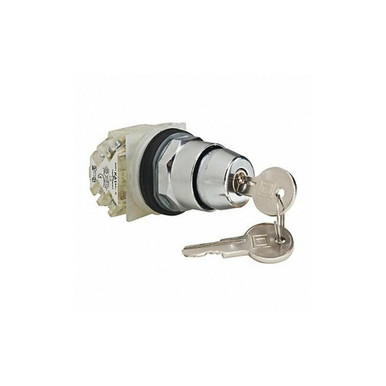

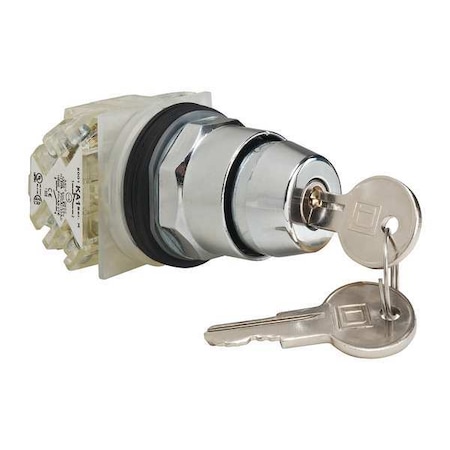

SCHNEIDER ELECTRIC 9001KS11K3H2 Selector Switch 600-Vac 10-Amp 30Mm T-K Electrical Box

SCHNEIDER ELECTRIC 9001KS11K3H2 Selector Switch 600-Vac 10-Amp 30Mm T-K Electrical Boxzoom

Attributes

Key Value
ActionMaintained / Maintained.
ActuatorBlack key operated knob.
Actuator TypeLever
Amperage Rating10
Approval AgencyCE, CSA, UL
Basic MaterialMetal
Bezel ColorChrome
Bezel MaterialMetal, Zinc Die Cast
BrandSquare D, Schneider Ele.
California Proposition .Nickel compounds, which.
CamE
Cam Profile5
Catalog Number9001KS11K3H2
CategorySwitches
China Rohs RegulationX
CircuitDPDT
ColorChrome
Connectionscrew-clamp terminals, .
Connection TypeScrew Clamp Terminals, .
Connections - Terminalsscrew-clamp terminals, .
Contact Configuration2 C/O
Contact Form2NO/2NC
Contact Operation2 C/O
Contact Rating10A @ 600V AC, AC15 - D.
Contacts Type And Compo.2 C/O
Country of OriginMX - Mexico, Mexico
Current Rating10 A
Current Rating (Amps)-
Current Stock9
Depth Behind Flange-
DescriptionSELECTOR SWITCH 600VAC .
Detailed DescriptionSelector Switch 2 Posit.
Device Presentationcomplete product
Device Short NameK
Diameter30 mm
Digi-Key Part Number4008-9001KS11K3H2-ND
ECCNEAR99
Electrical Life-
EnclosureNEMA 1/2/3/3R/4/6/12/13
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Environmental DisclosureENVPEP121006EN
Eu Rohs DirectivePro-active compliance (.
Family NameHarmony 9001K/SK/KX Fam.
FeaturesBezel - Round, Black Kn.
GTIN00785901034896
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (N.-
Includeskey
IndicatorBLACK
Ingress Protection-
International ShippingNo
IP Rating65
ItemNon-Illuminated Selecto.
Item Typeselector switch
Key NumberE10
Key RemovalLeft and Right
Key Withdrawal PositionLeft and Right
Knob Stylekey switch
Lead TimeExpected to ship in 1-2.
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.9001KS11K3H2
Manufacturer Standard L.1 Weeks
MaterialMetal
Mechanical Life-
Mercury FreeYes
MfrSchneider Electric
MountingPanel Mount
Mounting Diameter30 mm
Mounting Hole Size30 ; 1.18 mm ; in
Mounting TypePanel Mount
Mpn9001KS11K3H2
NEMA Contact Rating Des.A600/Q600
Nema Degree Of Protecti.NEMA 1/2/3/3R/4/6/12/13
NEMA Rating12, 13, 3, 3R, 4
No. of Positions2
Number of Positions2
Operating Temperature-
Operator Head MaterialBrass/Zamak
Operator Position Infor.2 positions
Operator Profilekey switch, black key o.
PackageBox
Panel Cutout DimensionsCircular - 30.00mm Dia
Position2
Product CertificationsCE || CSA LR24590 class.
Product Or Component Ty.selector switch
Product StatusActive
Range Of ProductHarmony 9001K
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHarmony 9001K Series, H.
Size30 mm
SKUZO-G6985885
Special FeaturesCHROMIUM PLATED METAL,S.
StandardCE-CSA LR24590 CLASS 32.
StandardsCE Marked, CSA Certifie.
Sub BrandK
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Switch FunctionOn-On
Switch Operation @ Posi.OXOX
Switch Operation @ Posi.XOXO
Switch Operation @ Posi.No Third Position
Switch Operation @ Posi.No Fourth Position
TerminationScrew
Termination StyleScrew Terminal
TypeStandard
Type Of Operatorstay put, maintained
Type of OperatorKeyed
UNSPSC39122216
UPC785901034896
UPC Code785901034896
Voltage Rating600V, 600 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG6985885164.8124Schneider Electric0.55164.8 @ 1
thumbzoomsimsupply.comZO-G6985885204.8219Schneider Electric204.82 @ 1
thumbzoommostelectric.com9001KS11K3H2244.621In StockSQUARE D/TELEMECANIQUE244.62 @ 1
standardelectricsupply.com2328231257.31In StockSquare D257.3 @ 1
thumbzoommayerelectric.comSQD9001KS11K3H2257.41In StockSQUARE D257.4 @ 1
us.rs-online.com70343298266.091In StockSquare D266.09 @ 1
Graybar96021260275.521In StockSquare D (Schneider Electric)275.52 @ 1
thumbzoomNewark16B9502278.291In StockSCHNEIDER ELECTRIC278.29 @ 1
thumbzoomDigi-Key17158317299.61In StockSchneider Electric299.6 @ 1
thumbzoomsustainablesupply.comC1197456301.121In StockSchneider Electric0.55301.12 @ 1
thumbzoomRaptor SuppliesAH9VXH392.96082151In StockSCHNEIDER ELECTRIC392.9608215 @ 1
thumbzoomcrescentelectric.com740582408.011In StockSquare D408.01 @ 1
