MSP430F5659IPZ-TEXAS INSTRUMENTS

B00HKIAF32

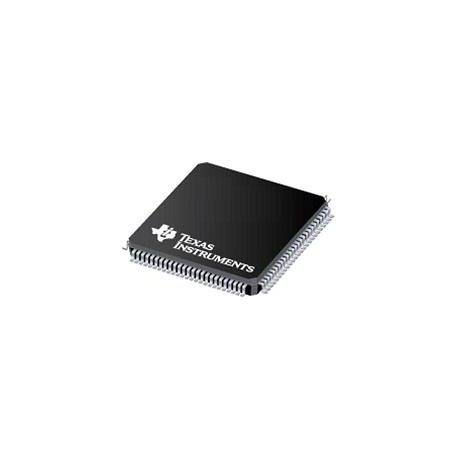

TEXAS INSTRUMENTS MSP430F5659IPZ MCU, 16BIT, MSP430, 20MHZ, LQFP-100

TEXAS INSTRUMENTS MSP430F5659IPZ MCU, 16BIT, MSP430, 20MHZ, LQFP-100zoom

Attributes

Key Value
Base Product Number430F5659
CaseLQFP100
CategoryIntegrated Circuits (IC.
ConnectivityI?C, IrDA, SCI, SPI, UA.
Core ProcessorMSP430 CPUXV2
Core Size16-Bit
Data ConvertersA/D 16x12b; D/A 2x12b
EEPROM Size-
FamilyMSP430F5x/6x
Flash memory capacity512kB
Kind of architectureMSP430
ManufacturerTEXAS INSTRUMENTS
MfrTEXAS INSTRUMENTS
MountingSMD
Mounting TypeSurface Mount
Number of 12bit A/D con.12
Number of 16bit timers4
Number of comparators12
Number of I/O74
Number of input capture.18
Number of output compar.18
Number of PWM channels18
Operating Temperature-40?C ~ 85?C (TA)
Operating temperature-40...85?C
Oscillator TypeInternal
PackageTray
Package / Case100-LQFP
Part StatusActive
PeripheralsBrown-out Detect/Reset,.
Program Memory Size512KB (512K x 8)
Program Memory TypeFLASH
RAM Size66K x 8
SeriesMSP430F5xx
Speed20MHz
SRAM memory capacity66kB
Supplier Device Package100-LQFP (14x14)
Type of integrated circ.microcontroller
Voltage - Supply (Vcc/V.1.8V ~ 3.6V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH231956911.7811241Texas Instruments11.78 @ 1
thumbzoomNewark28AH422614.741In StockTEXAS INSTRUMENTS14.74 @ 1
thumbzoomTMEMSP430F5659IPZ14.771In StockTEXAS INSTRUMENTS14.77 @ 1
Digi-Key390269215.42450In StockTexas Instruments15.42 @ 1
