- mpnEC12B
- brandname: US Motors
- manufacturername: US Motors

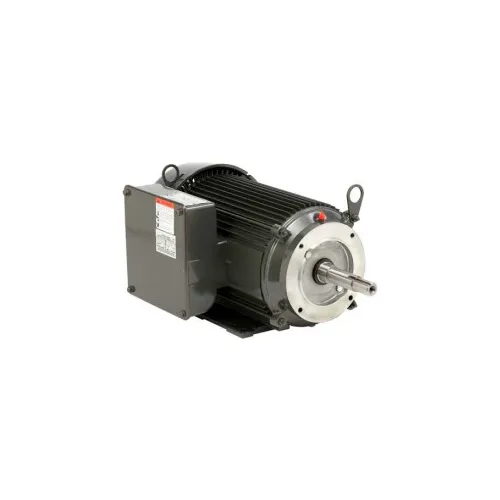

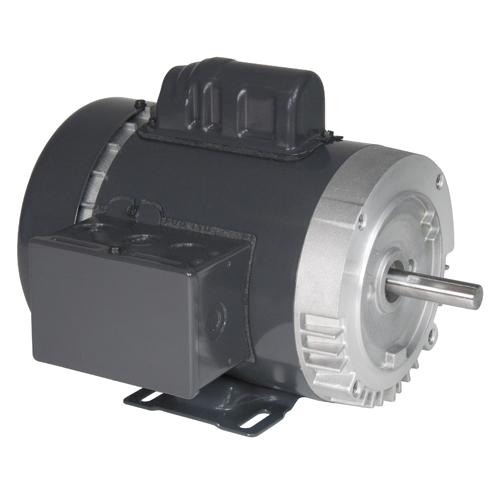

U.S. Motors US Motors Pump, 1 1/2 HP, 1-Phase, 1725 RPM Motor, EC12B
- Brand: U.S. Motors
- PartNumber: EC12B
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 14.0/7.7-7.0 |
| Bearings | Ball |
| Capacitor | 45MFD/370VAC |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 41.80 |
| Family Series | US Motors Motors |
| FL Amps | 14.0/7.7-7.0 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 41.6 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Insulation Class | B |
| Item | Mtr,1-1/2HP,1725RPM,115. |
| Item Number | EC12B |
| Kilowatts | 1.1 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063CPY1463014J |
| Manufacturer Part Number | EC12B |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063CPY1463014J |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face, Rigid |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | EC12B |
| Phase | 1 |
| Product Type | General Purpose, Capaci. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| Service Factor | 1.15 |
| Ship Weight | 38 lbs. |
| Speed (RPM) | 1725 |
| Thermal Protection | Automatic |
| Voltage | 110-120V, 208V, 230V |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Volts | 115, 208, 230 |
