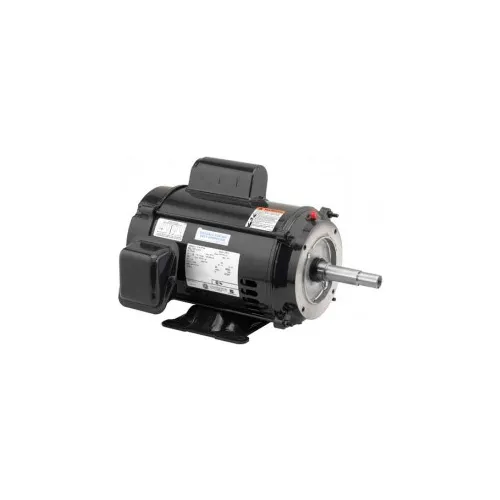

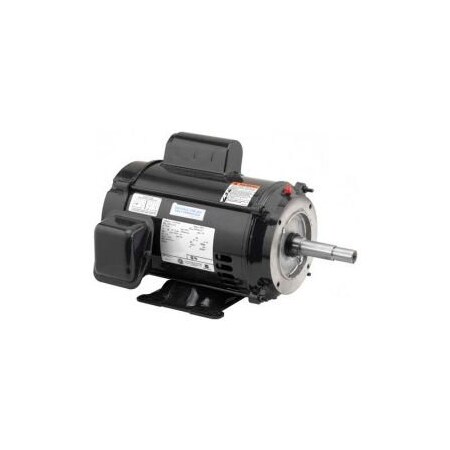

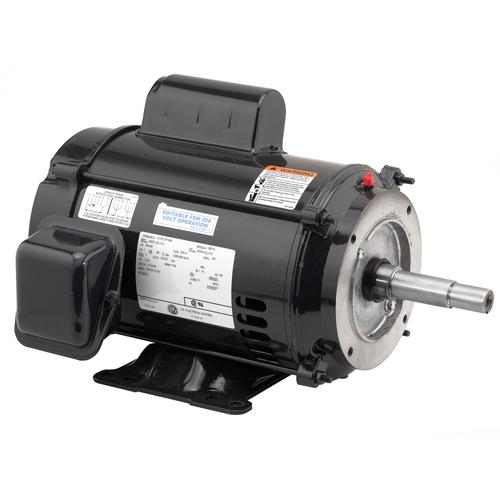

U.S. Motors US Motors Pump, 2 HP, 1-Phase, 3450 RPM Motor, EJM202B


- Brand: U.S. Motors
- PartNumber: EJM202B
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
Key | Value |
---|
Amps | 19.6/10.7-9.8 |
Bearings | Ball |
Capacitor | 30MFD/370VAC |
Composition | Rolled Steel |
Construction | Rolled Steel |
Drive End Flange Type | C-Face |
Enclosure | Open Drip Proof, Open |
Enclosure Type | ODP (Open Dripproof) |
Estimated Weight | 38.50 |
Family Series | US Motors Motors |
FL Amps | 19.6/10.7-9.8 |
Frame | 145JM |
Frequency | 60 Hz |
Full Load Current | 19.6 A |
Gross Weight | 32 lbs |
Hertz | 60 |
Horsepower | 2 hp |
HP | 2 |
Hz | 60 |
Insulation Class | B |
Item Number | EJM202B |
Kilowatts | 1.5 kW |
Manufacturer | US Motors (Nidec), US M. |
Manufacturer Model # | T063CRY1484014J |
Manufacturer Part Number | EJM202B |
Maximum Ambient Tempera. | 40? C |
Model Number | T063CRY1484014J |
Mounting | Foot Mount, Base/Face |
Mounting Type | C-Face, Rigid |
NEMA Frame | 145JM |
Net Weight | 0 lbs |
Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
Number of Poles | 2 |
Number of Speeds | 1 |
Overload Protection | None |
Part Number | EJM202B |
Phase | 1 |
Product Type | Pump, Capacitor Start |
Rotation | Reversible |
RPM | 3450, 3,450 RPM |
Service Factor | 1.15 |
Ship Weight | 35 lbs. |
Speed (RPM) | 3450 |
Type | Special Application Clo. |
Voltage | 110-120V, 208V, 230V |
Voltage (AC) | 115 VAC, 208-230 VAC |
Volts | 115, 208, 230 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | emotorpro.com | EJM202B | 578.56 | 1 | In Stock | | U.S. Motors | 35.0 | 578.56 @ 1 |
  | motorsandcontrol.com | EJM202B | 590.4 | 1 | In Stock | | US Motors (Nidec) | 38.5 | 590.4 @ 1 |
  | Global Industrial | WBB466648 | 595.0 | 1 | In Stock | | US Motors | | 595.0 @ 1 |
  | National Supply Network | B466648 | 636.99 | 1 | In Stock | | US MOTORS | | 636.99 @ 1 |
  | Galco | EJM202B-USM | 668.11 | 1 | In Stock | | US Motors | 32.0 | 668.11 @ 1 |
| motionindustries.com | 04385443 | 853.05 | 1 | In Stock | | US Motors (Nidec) | | 853.05 @ 1 |
  | Zoro | G408463510 | 971.68 | 1 | In Stock | | U.S. Motors | | 971.68 @ 1 |
