- mpnFD32CA1P14
- brandname: US Motors
- manufacturername: US Motors

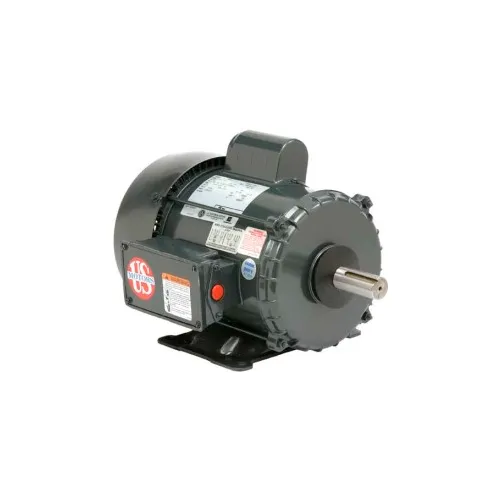

U.S. Motors US Motors Farm Duty, 1 1/2 HP, 1-Phase, 3450 RPM Motor, FD32CA1P14
- Brand: U.S. Motors
- PartNumber: FD32CA1P14
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 17.4/8.7 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 73% |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 35.20 |
| Family Series | US Motors Motors |
| FL Amps | 17.4/8.7 |
| FL Efficiency | 73 |
| Frame | 143TZ |
| Frequency | 60 Hz |
| Gross Weight | 32 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Insulation Class | B |
| Item | Motor,1 1/2HP,3450,115/. |
| Item Number | FD32CA1P14 |
| Kilowatts | 1.1 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C063JCA5265012B |
| Manufacturer Part Number | FD32CA1P14 |
| Maximum Ambient Tempera. | 50? C |
| Model Number | C063JCA5265012B |
| Mounting | Foot Mount, Base |
| Mounting Type | Rigid |
| NEMA Frame | 143TZ |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | FD32CA1P14 |
| Phase | 1 |
| Product Type | Fractional HP (HVAC), C. |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| Service Factor | 1.00 |
| Ship Weight | 32 lbs. |
| Speed (RPM) | 3450 |
| Thermal Protection | Automatic |
| Voltage | 110-120V, 230V |
| Voltage (AC) | 115 VAC, 230 VAC |
| Volts | 115, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motorsandcontrol.com | FD32CA1P14 | 454.85 | 1 | In Stock | | US Motors (Nidec) | 35.2 | 454.85 @ 1 |
 | Zoro | G0408062 | 484.73 | 1 | In Stock | | U.S. Motors | 32.0 | 484.73 @ 1 |
 | Global Industrial | WBB467444 | 484.95 | 1 | In Stock | 17 | US Motors | | 484.95 @ 1 |
 | emotorpro.com | FD32CA1P14 | 499.3 | 1 | In Stock | | U.S. Motors | 32.0 | 499.3 @ 1 |
 | National Supply Network | B467444 | 541.24 | 1 | In Stock | | US MOTORS | | 541.24 @ 1 |
 | Galco | FD32CA1P14-USM | 592.74 | 1 | In Stock | | US Motors | 32.0 | 592.74 @ 1 |
| motionindustries.com | 02558039 | 756.82 | 1 | In Stock | | US Motors (Nidec) | | 756.82 @ 1 |
