- mpnU7P3DC
- brandname: US Motors
- manufacturername: US Motors

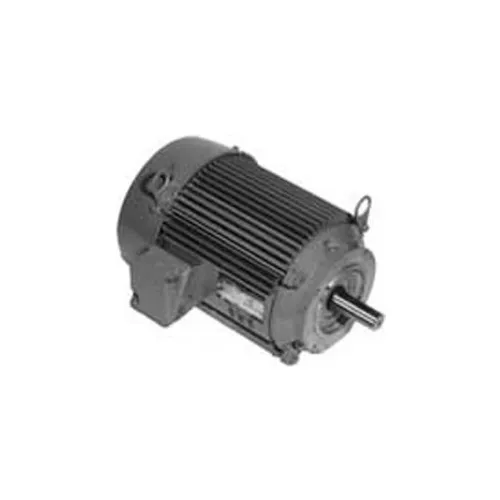

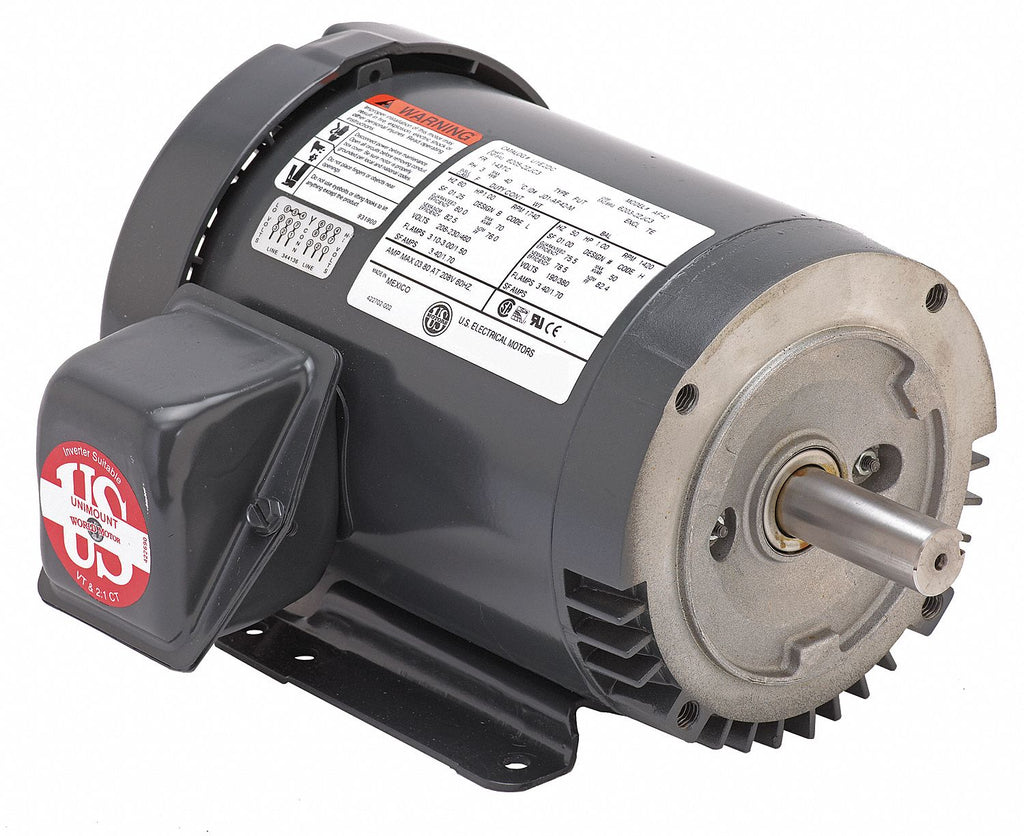

U.S. Motors US Motors Unimount TEFC, 7.5 HP, 3-Phase, 1180 RPM Motor, U7P3DC
- Brand: U.S. Motors
- PartNumber: U7P3DC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Composition | Aluminum |
| Construction | Aluminum |
| Drive End Flange Type | C-Face |
| Enclosure | TEFC, Totally Enclosed . |
| Estimated Weight | 198.00 |
| Family Series | US Motors Motors |
| FL Amps | 20.6-19/9.5 |
| FL Efficiency | 91 |
| Frame | 254TC |
| Frequency | 60 Hz |
| Gross Weight | 180 lbs |
| Hertz | 50, 60 |
| Horsepower | 7-1/2 hp |
| HP | 7 1/2, 7.5 |
| Hz | 60/50 |
| Item | General Purpose Motor |
| Item Number | U7P3DC |
| Kilowatts | 5.6 kW |
| Length Less Shaft | 19 7/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Part Number | U7P3DC |
| Manufacturers Warranty . | 2 yr |
| Model Number | DY92 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount |
| Mounting Type | C-Face Footed |
| Nameplate RPM | 1,200 |
| NEMA Frame | 254TC |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 24 in |
| Part Number | U7P3DC |
| Phase | 3 |
| Product Type | General Purpose |
| RPM | 1,180 RPM |
| RPM Range | 1,101-1,200 |
| Shaft Dia. | 1 5/8 in |
| Shaft Length | 4 in |
| Speed (RPM) | 1180 |
| Standards | CE, CSA, UL |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | sustainablesupply.com | C2828708 | 1084.7 | 1 | In Stock | | US Motors | 194.0 | 1084.7 @ 1 |
 | Global Industrial | WBB467689 | 1559.0 | 1 | In Stock | 17 | US Motors | | 1559.0 @ 1 |
 | Zoro | G4536357 | 1759.99 | 1 | In Stock | | U.S. Motors | 194.0 | 1759.99 @ 1 |
 | Galco | U7P3DC-USM | 1783.66 | 1 | In Stock | | US Motors | 180.0 | 1783.66 @ 1 |
 | motorsandcontrol.com | U7P3DC | 1783.66 | 1 | In Stock | | US Motors (Nidec) | 198.0 | 1783.66 @ 1 |
 | National Supply Network | B467689 | 1802.84 | 1 | In Stock | | US MOTORS | | 1802.84 @ 1 |
| motionindustries.com | 04601406 | 2531.69 | 1 | In Stock | | US Motors (Nidec) | | 2531.69 @ 1 |
