- mpnFD1CM2PZY
- brandname: US Motors (Nidec)
- manufacturername: US Motors (Nidec)

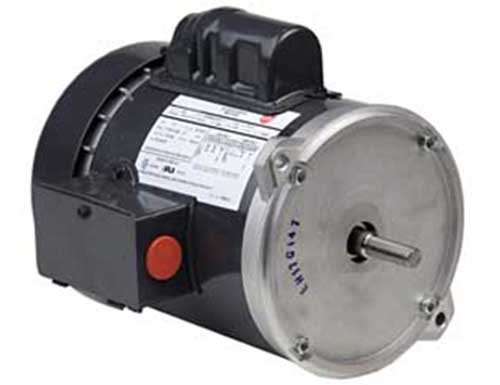

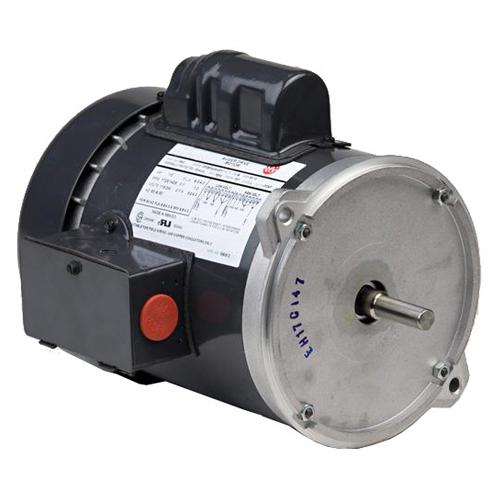

US Motors (Nidec) FD1CM2PZY - Farm Duty - Auger Drive Motor - 1 ph, 1 hp, 1800 rpm, 115/208-230 V, 56Y Frame, TEFC Enclosure, 60 Hz
- Binding: Misc.
- Manufacturer: US Motors (Nidec)
- Label: US Motors (Nidec)
Attributes
| Key | Value |
|---|
| Amps | 12.8/6.5-6.4 |
| Bearings | Ball |
| Capacitor Required | Yes |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Duty | CONT |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 41.25 |
| Family Series | US Motors Motors |
| Frame | 56Y |
| Frequency | 60 Hz |
| Full Load Amps | 12.8/6.5-6.4 A |
| Gross Weight | 36.04 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| Item | Motor |
| Item - Farm Duty Motors | Auger Drive Motor |
| Item Number | FD1CM2PZY |
| Kilowatts | 0.8 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C063GJL1192015B |
| Manufacturer Part Number | FD1CM2PZY |
| Maximum Ambient Tempera. | 40? C |
| Model Number | C063GJL1192015B |
| Motor Bearings | Ball |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Sub Application | Auger |
| Motor Thermal Protection | Manual |
| Mounting | Foot Mount, Base |
| Mounting Type | Rigid |
| NEMA Frame | 56Y |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 12.9 |
| Overload Protection | Manual |
| Part Number | FD1CM2PZY |
| Phase | 1, 1 ph |
| Product Type | General Purpose, Capaci. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| RPM Range | 1725 RPM |
| Service Factor | 1.00 |
| Ship Weight | 38 lbs. |
| Speed (RPM) | 1725 |
| Standards | EE |
| Thermal Protection | Manual |
| Usable @ 208V | Yes |
| Voltage | 115/208-230 V, 110-120V. |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Volts | 115, 208, 230 |
| Weight | 36.04 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | FD1CM2PZY | 278.11 | 1 | In Stock | | U.S. Motors | 38.0 | 278.11 @ 1 |
 | motorsandcontrol.com | FD1CM2PZY | 631.93 | 1 | In Stock | | US Motors (Nidec) | 41.25 | 631.93 @ 1 |
 | Galco | FD1CM2PZY-USM | 646.98 | 1 | In Stock | | US Motors | 36.04 | 646.98 @ 1 |
 | Zoro | G0408044 | 646.99 | 1 | In Stock | | U.S. Motors | 36.0 | 646.99 @ 1 |
| motionindustries.com | 02558044 | 828.09 | 1 | In Stock | | US Motors (Nidec) | | 828.09 @ 1 |
