- mpnC15319
- brandname: CLEVELAND
- manufacturername: CLEVELAND

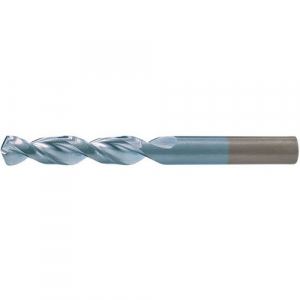

Cleveland 2175N Cobalt Steel Jobbers' Length Drill Bit, TiCN Coated, Round Shank, 135 Degree Notch Point, Wire Size #29 (Pack of 10)
- Brand: Cleveland
- PartNumber: C15319
- Model: C15319
- Size: #29
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Chilled Cast Iron, High. |
| Application | For Stainless Steel, To. |
| Bit Dia. | #29 |
| Brand | Cleveland |
| Catalog Page | N/A |
| Construction | Wide Land Parabolic |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Decimal Equivalent | 0.1360" / 3.45mm, 0.1360 |
| Depth x Dia. Ratio | 10xD |
| Depth:Dia. Ratio | 10xD |
| Diameter Wire | 29 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | TiCN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #29 |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0282 in |
| Drill Size - Decimal In. | 0.136 in |
| Drill Size - Wire | #29 |
| Drilling Length | 0.938" |
| Finish | TiCN Coated |
| Finish - Machining | TiCN |
| Flute Length | 15/16 in |
| Flute Type | Parabolic, Right Spiral. |
| Grade | High Performance |
| Hand of Spiral Cut | RHS / RHC |
| Helix Angle | 40 Degrees, 40 ? |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Item? | 439Y59 |
| Length of Flute | 0.9375" / 23.81mm |
| List Number | 2175-TC |
| List Style | 2175-TA |
| Material | M42 HSS-Co 8, HSS-CO 8%. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 15/16 in |
| Measurement System | Wire |
| Mfr. Model? | C15319 |
| Mpn | C15319 |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Overall Length | 1 15/16 in, 1-15/16 in,. |
| Point | 135? Split |
| Point Angle | 135 deg |
| Point Type | Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N, P, N; P |
| Secondary Material Appl. | Cast Iron, Stainless St. |
| Secondary Material Appl. | K; M, K, M |
| Series | 2175-TC |
| Shank | Straight |
| Shank Dia. | 1/8 in |
| Shank Length | 1 in |
| Shank Shape | Straight |
| Shank Size | 0.136 in Dia x 1 in L, . |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | #29 |
| SKU | ZO-G3004631 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M-1993 |
| Style | 2175-TC |
| SubCategory | Machining |
| Surface Condition | TiCN |
| Tool Size | #29 |
| Type | High Performance |
| UNSPSC | 27112801 |
| UPC | 697334153191 |
