- mpn2Z936
- brandname: DAYTON
- manufacturername: DAYTON

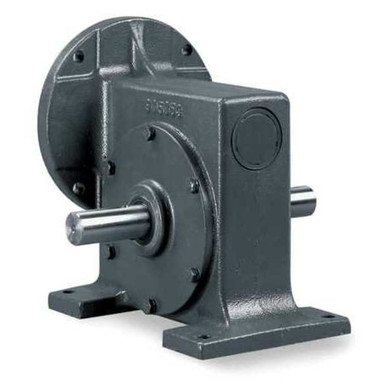

Speed Reducer,C-Face,56C,10:1
- Brand: Dayton
- PartNumber: 2Z936
- Model: 2Z936
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: DAYTON
- Label: DAYTON
Attributes
| Key | Value |
|---|
| Bearings | Ball |
| Bore Dia. | 5/8" |
| Brand | Dayton |
| Current Stock | 3 |
| Dimension U | 1 1/4 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Frame | 56C |
| Gear Material | Hardened and Ground Ste. |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input RPM | 1725, 1750 rpm, 1750 |
| Input Shaft Diameter | 5/8 in |
| International Shipping | No |
| Item | Speed Reducer |
| Lead Time | Expected to ship in 1-2. |
| Lubrication | Kluber Food Grade, Klub. |
| Max. Input HP | 0.75 hp, 3/4, 0.75 |
| Max. Output Torque | 226.00 in.-lb. |
| Max. Torque (In.-Lbs.) | 226 |
| Mpn | 2Z936 |
| NEMA/IEC Frame | 56C |
| Nominal Output RPM | 173, 173 RPM |
| Nominal Ratio | 10:1 |
| Number of Stages | 1 |
| Oil Seal | Double Lip |
| Output Shaft Dia. | 1 1/4 in |
| Output Shaft Diameter | 1 1/4 in |
| Output Torque @ 1 HP | 226 in-lbs, 226 in.-lb. |
| Output Torque @ 1/2 HP | 146 in-lbs |
| Output Torque @ 1/2 HP . | 146 |
| Output Torque @ 1/3 HP | 92 in-lb, 92 in-lbs |
| Output Torque @ 1/3 HP . | 92 |
| Output Torque @ 1/4 HP | 65 in-lb |
| Output Torque @ 1/4 HP . | 65 |
| Output Torque @ 1/40 HP | 3,600 in-lbs, 3600 in.-. |
| Output Torque @ 3/4 HP | 226 in-lbs, 226 in-lb |
| Output Torque @ 3/4 HP . | 226 |
| Overhung Load | 432 lb. |
| Overhung Load (Lb.) | 432 |
| Pinion Material | Hardened Steel |
| Prop 65 | WARNING: Cancer and Rep. |
| Rotation | CW/CCW, Forward/Reverse |
| Seal Type | Double Lip |
| Shaft Assembly | Double Output |
| Shaft Orientation | Right Angle |
| Ship Weight | 29 lbs. |
| Single/Double Output/Un. | Double Output |
| SKU | ZO-G1719374 |
| Solid/Hollow Output Sha. | Solid |
| Speed Reducer Type | C-Face |
| Standards | AGMA |
| SubCategory | Power Transmission |
| Type | C-Face |
| UPC | 190735241394 |
| Worm Center Distance | 2.62" |
| Worm Gear Material | Bronze |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1719374 | 446.99 | 1 | 16 | | Dayton | 28.3 | 446.99 @ 1 |
 | simsupply.com | ZO-G1719374 | 551.54 | 1 | 3 | | Dayton | | 551.54 @ 1 |
| grainger.ca | DTN2Z936 | 644.56653442 | 1 | In Stock | | DAYTON | 28.3 | 644.56653442 @ 1 |
 | sustainablesupply.com | C2777361 | 702.81 | 1 | In Stock | | Dayton | 28.3 | 702.81 @ 1 |
 | Raptor Supplies | AC4DWJ | 733.8196125 | 1 | In Stock | | DAYTON | | 733.8196125 @ 1 |
| emotorpro.com | 2Z936 | 997.06 | 1 | In Stock | | Dayton | 29.0 | 997.06 @ 1 |
