HAMMOND 1414N4PHS16K

B005T8NAGE

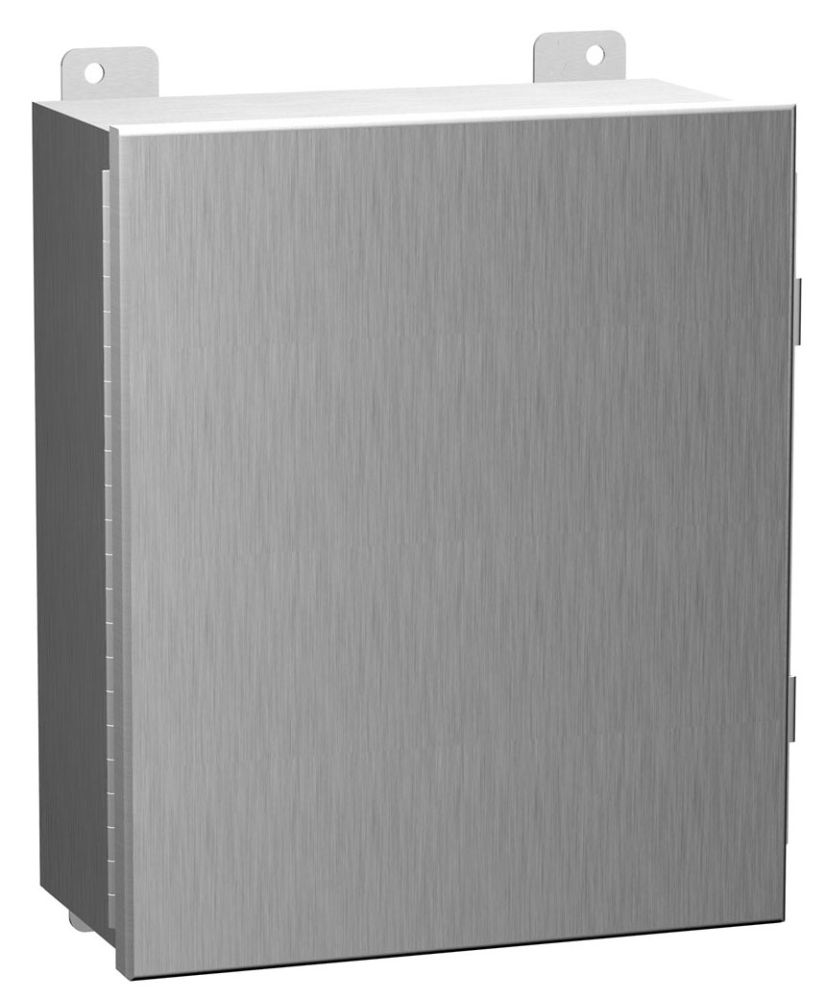

Hammond N4X J Box, Hinge Cover W/Panel - 12 X 10 X 5-316 Ss - 1414N4PHS16K

Hammond N4X J Box, Hinge Cover W/Panel - 12 X 10 X 5-316 Ss - 1414N4PHS16Kzoom

Attributes

Key Value
ApplicationDesigned for use as ins.
ApprovalsCE, CSA, UL
Approximate Depth4" (102mm)
Approximate Height12" (305mm)
Approximate Width10" (254mm)
Back Panel NumberIncluded
BrandHammond Mfg.
Capacity600 cu-in
Catalog Number1414N4PHS16K
ColorGray, Natural, Unpainted
CompositionMetallic
ConfigurationSmooth Wall
Country of OriginCanada
Cover DesignHinged
Cover TypeContinuous Hinged
Cubic Capacity600 Cubic in
Depth5 in
Depth (In)5.00
Description:N4X J Box, Hinge Cover .
Dimensions12 x 10 x 5 . ; 305 x 2.
Dimensions (H x W x D)12 x 10 x 5"
Door DesignHinged (Single Door)
Enclosure Series1414 N4 PH SS
Estimated Weight15
Family Name1414 NEMA Family
Family SeriesHammond Manufacturing E.
FinishBrushed, Smooth Brushed
Gross Weight15 lbs
Height12 in
Height (In)12.00
IEC RatingIP66
Inner PanelIncluded
IP RatingIP54
Item Number1414N4PHS16K
Item TypeN4X J Box, Hinge Cover .
Latching MechanismClamps
Locking FeatureClamp
Made in USANo
ManufacturerHammond Manufacturing C.
Manufacturer Part Number1414N4PHS16K
Material316 SS, 316 Stainless S.
MFG Part #:1414N4PHS16K
MountingFeet, Wall
Mounting TypeWall
Nema Rating3R, 4X Stainless-316, 13
NEMA RatingNEMA 3R/4X/13, 3R, 4X, .
NEMA Type3R, 4, 4X, 12 and 13
Net Weight15 lbs
Nominal Depth5 "
Nominal Height12 "
Nominal Width10 "
Number of Doors1
Options IncludedGasketed Cover, Ground .
Panel IncludedYes
Panel Size10.75 in H x 8.88 in W
Part Number1414N4PHS16K
Product Series1414N4PSS
RoHSYes
Series1414 Series, 1414 N4 PH.
Size12 in x 10 in x 5 in
Special FeaturesFormed from 14 gauge 30.
Standardcsa, ul, ce
StandardsUL, CSA IEC, RoHS
Sub Brand1414 N4 PH SS Series
Supplier:Hammond Manufacturing
TypeJunction Box, Wall Moun.
UPC623980191690, 062398019.
UPC Code623980191690
UPC:623980191690
Width10 in
Width (In)10.00
Window/Clear CoverNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1414N4PHS16K378.2711HAMMOND MFG378.27 @ 1
thumbzoomCarlton Bates Company62398019169457.811In StockHAMMOND MANUFACTURING457.81 @ 1
Enclosure Hub1414N4PHS16K516.091In StockHammond Manufacturing516.09 @ 1
thumbzoomSolutions Direct1414N4PHS16K523.181In StockHammond Manufacturing523.18 @ 1
Hawk Electronics1414N4PHS16K526.01In StockHammond Mfg.526.0 @ 1
thumbzoomWalker Industrial1414N4PHS16K536.051In Stock17Hammond Manufacturing536.05 @ 1
AmazonTPB00HKIVKWM537.51In Stock5Hammond Manufacturing537.5 @ 1
thumbzoomNewark50H5611547.96122HAMMOND547.96 @ 1
us.rs-online.com70305812571.731In StockHammond Manufacturing571.73 @ 1
thumbzoomGalco1414N4PHS16K-HMND576.811In StockHammond Manufacturing15.0576.81 @ 1
thumbzoomturtle.comHMC 1414N4PHS16K593.671In StockHammond Manufacturing593.67 @ 1
Dale-Electric1414N4PHS16K593.911In StockHammond Manufacturing Co., Inc.593.91 @ 1
thumbzoomAutomation Direct1414N4PHS16K600.0148Hammond15.0600.0 @ 1
thumbzoommotorsandcontrol.com1414N4PHS16K612.641In StockHammond Manufacturing15.0612.64 @ 1
thumbzoomgordonelectricsupply.com1414N4PHS16K615.01In StockHAMMOND MFG615.0 @ 1
thumbzoomcrescentelectric.com97669641.741In StockHammond Mfg.641.74 @ 1
kscdirect.comHAM 1414N4PHS16K643.191In StockHammond Manufacturing643.19 @ 1
