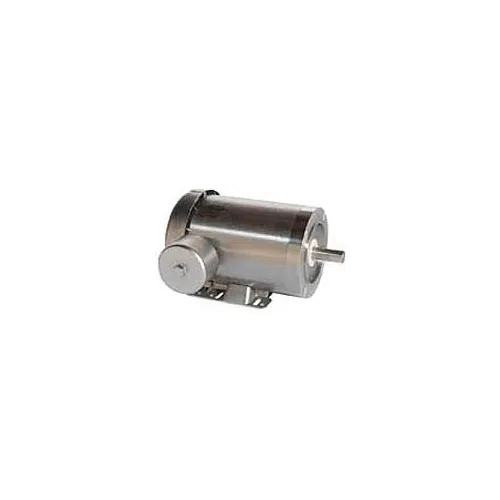

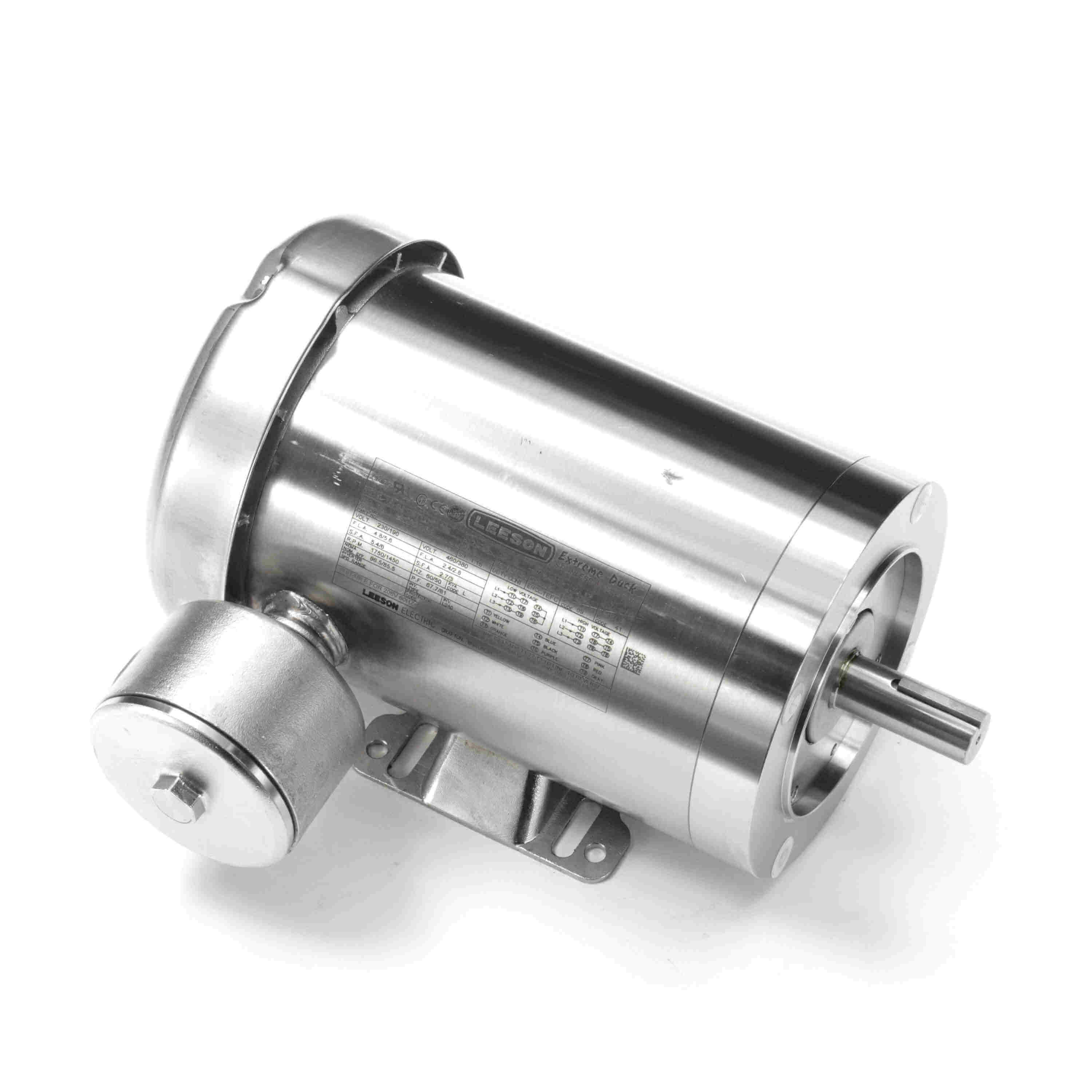

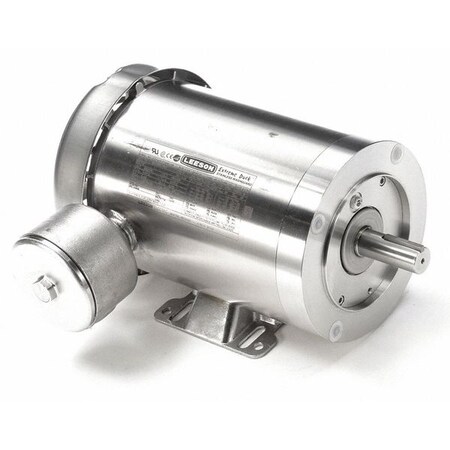

Leeson Electric 121880.00 - CZ143T17WK13 A AC down Duty Motor - General Purpose Motor - (Stainless Steel), 3 ph, 1-1/2 hp, 1800 rpm, 208-230/460 V, 143TC Frame, TEFC Enclosure, 50/60 H

Leeson Electric 121880.00 - CZ143T17WK13 A AC down Duty Motor - General Purpose Motor - (Stainless Steel), 3 ph, 1-1/2 hp, 1800 rpm, 208-230/460 V, 143TC Frame, TEFC Enclosure, 50/60 Hzoom

Attributes

Key Value
Amperage Rating4.6 to 4.8/2.4 A
Amps4.6-4.8/2.4
ApplicationBeverage Industries, Ch.
ApprovalsCSA, UL
Bearing TypeDouble Sealed, Ball
BearingsBall
Body Dia.7.4 in
Bolt Circle Dia.5 7/8 in
CC NumberCC005A
Class/GroupCZ143T17WK13
CompositionSteel
Conduit BoxOversized Stainless Ste.
Conduit Box LocationExterior
Country of Origin (subj.United States
Description:..1 1/2HP..1750RPM.143..
Dimensions12.75 in L x 7.2 in H
Drain PlugsNone
Drive End Bearing Size6205
Drive End Bearing TypeBall
DutyContinuous
Duty CycleContinuous
Efficiency86.5%, 86.5
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialStainless Steel
Enclosure TypeTEFC (Totally Enclosed .
Endshield Material300 Series Stainless St.
Endshields300 Series Stainless St.
Family SeriesLeeson Motors, Extreme .
Footnotes8, 11
Frame143TC
Frame MaterialStainless Steel
Frequency60
Frequency Rating60 Hz
Full Load Amps2.4
Full Load Amps @ 50Hz4.6-4.8/2.4
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Horsepower1-1/2 hp, 1.5 hp
HP1 1/2, 1.50, 1-1/2
HP @ 50Hz1.5
Hz60, 60/50
IncludesFrame, Base, Conduit Bo.
Ins. ClassF
Insulation ClassClass F, F
Inverter RatedYes
ItemWashdown Motor
Item Number121880.00
KW1.1
Length Less Shaft11 9/16 in
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number121880.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:121880.00
Model NumberCZ143T17WK13
Motor ApplicationWashdown
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCCW, CW
Motor Shell Length7.75"
Motor Thermal ProtectionNone
MountingRigid Base
Mounting TypeFoot Mount, Rigid, C-Fa.
Nameplate RPM1,750
NEMA DesignB
NEMA Frame145TC
Net Weight56 lbs
No. of Speeds1
Nominal Efficiency86.5 %
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6205
Opp. Drive End Bearing .Ball
Overall Length12.75 ", 13 15/16 in, 1.
Phase3, Three, 3 ph
Product SeriesExtreme Duck
Product TypeWashdown Motor, Three P.
RotationReversible
RPM1,800 RPM, 1700 - 1800,.
RPM @ 50Hz1,750
RPM Range1,701-1,800
Service Factor1.15
Service Factor @ 50Hz1.15
Shaft Dia.7/8 in
Shaft DiameterUL;CSA, 0.875, 0.875"
Shaft Length2 1/4 in, 2.25", 2.25
Shaft MaterialStainless Steel
Shaft Size0.88 in Dia x 2.25 in L
Ship Weight58 lbs.
Speed1750 rpm
StandardsBISSC Approved, CE, CSA.
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720989289
Usable @ 200VNo
Usable @ 208VNo
Voltage230/460V AC, 230/460
Voltage @ 50Hz460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Weight58 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com121880913.01In StockLEESON913.0 @ 1
thumbzoomZoroG06905321198.171In Stock26Leeson58.01198.17 @ 1
thumbzoomMRO Supply25262941238.551In StockLeeson1238.55 @ 1
thumbzoomapexindustrialautomation.com121880.001397.3312Leeson1397.33 @ 1
thumbzoomemotorpro.com121880.001465.741In StockLeeson58.01465.74 @ 1
AmazonTPB007ICEK4U1534.941In Stock10Leeson1534.94 @ 1
us.rs-online.com733965081615.41In StockLeeson1615.4 @ 1
thumbzoomGalco121880.00-LEES1615.41In StockLeeson56.01615.4 @ 1
kscdirect.comLEE 121880.001777.071In StockLEESON ELECTRIC CORPORATION1777.07 @ 1
thumbzoomcbtcompany.com121880.001938.911In StockLeeson Electric1938.91 @ 1
thumbzoomWalker Industrial121880-002028.581In Stock17Leeson2028.58 @ 1
thumbzoomGlobal IndustrialWBB5883622245.01In StockLeeson2245.0 @ 1
thumbzoomRaptor SuppliesAE7DYW2907.15475051In StockLEESON2907.1547505 @ 1
