Lovejoy 68514477173

B004QWZHQ0

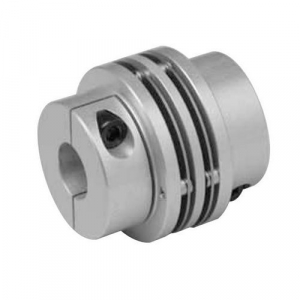

Lovejoy 77173 Size MDS-50C Mini Disc Spacer Clamp Style Coupling, Complete Coupling, 0.5" Bore A, 0.625" Bore B, 1.969" OD, 2.047" Length, 3100 rpm Max Rotational Speed, 66 in-lbs Nominal Torque

Lovejoy 77173 Size MDS-50C Mini Disc Spacer Clamp Style Coupling, Complete Coupling, 0.5" Bore A, 0.625" Bore B, 1.969" OD, 2.047" Length, 3100 rpm Max Rotational Speed, 66 in-lbs Nominal Torquezoom

Attributes

Key Value
# of Jaws3
Bore Size3/4 in
ColorSilver
Coupling SizeAL095
Coupling TypeJaw
Cubic inches6.74160 in
Description:MDS50C-CP-1/2X5/8;
Dimension G0.5 in 12.7 mm
Dimension HD2.120 in 53.85 mm
Dimension SL0.440 in 11.18 mm
Elastomeric MemberSOX (NBR) Rubber
Hub Length1.500 in 38.10 mm
Hub Style1
Keyway Size (W x D)1/8 x 1/16 in
Length thru Bore1 in 25.4 mm
ManufacturerLOVEJOY INC
MaterialAluminum
Max. Bore (Dimensions I.1.125 in 29.00 mm
Max. Speed9000.00 rpm
MFG Part #:68514477173
Min. Bore (Dimensions I.0.500 in 13.00 mm
Moment of Inertia (Soli.0.336 lb in
Nominal Torque194.00 in lb
Overall Length2.500 in 63.50 mm
Rated HP at 1,200 rpm3.72 hp
Rated HP at 1,800 rpm5.50 hp
Rated HP at 100 rpm0.31 hp
Rated HP at 3,600 rpm11.16 hp
Supplier:LOVEJOY INC
Thread (Dimension T)5/16-18
UPC:685144771735
Weight0.33 lb
Weight (Complete Coupli.0.80 lb
Weight - Solid0.60 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514477173203.91In StockLovejoy0.33203.9 @ 1
thumbzoomheavydutydepot.com68514477173203.91In StockLovejoy203.9 @ 1
cbtcompany.com68514477173245.971In StockLovejoy245.97 @ 1
kscdirect.comLOV 68514477173258.381In StockLOVEJOY INC258.38 @ 1
Airline HydraulicsLOVEJOY 68514477173376.261In StockLOVEJOY376.26 @ 1
