Lovejoy 68514477236

B004QWZI4G

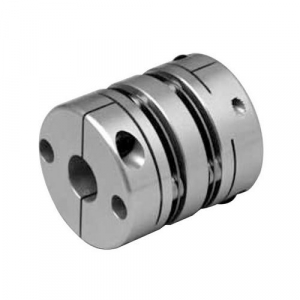

Lovejoy 77236 Size MD-50C Mini Disc Clamp Style Coupling, Complete Coupling, 0.75" Bore A, 0.875" Bore B, 1.969" OD, 2.244" Length, 4000 rpm Max Rotational Speed, 80 in-lbs Nominal Torque

Lovejoy 77236 Size MD-50C Mini Disc Clamp Style Coupling, Complete Coupling, 0.75" Bore A, 0.875" Bore B, 1.969" OD, 2.244" Length, 4000 rpm Max Rotational Speed, 80 in-lbs Nominal Torquezoom

Attributes

Key Value
# of Jaws5
Bore Size3-1/2 in
ColorGray/Metallic
CouplingC2955
Coupling TypeJaw
Cubic inches509.85907 in
Dimension CD9.620 in 244.35 mm
Dimension CL0.120 in 3.05 mm
Dimension G1.880 in 47.75 mm
Dimension HD7.120 in 180.85 mm
Dimension SL2.120 in 53.85 mm
Elastomeric MemberSOX (NBR) Rubber
Hub Style3
Keyway Size (W x D)7/8 x 7/16 in
Length thru Bore4.250 in 107.95 mm
MaterialCast Iron
Max. Bore (Dimensions I.4.000 in 102 mm
Max. Speed2300.00 rpm
Min. Bore (Dimensions I.1.750 in 44.00 mm
Moment of Inertia WR2932.000 lb in
Nominal Torque18900 in lb
Outside Diameter9.120 in 231.65 mm
Overall Length of Hub6.130 in 155.70 mm
Rated HP at 1,200 rpm360.00 hp
Rated HP at 1,800 rpm540.00 hp
Rated HP at 100 rpm30.00 hp
Thread (Dimension T)5/8-11
Weight48.00 lb
Weight (Complete Coupli.117.00 lb
Weight (Complete Coupli.90.00 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514477236208.91In StockLovejoy48.0208.9 @ 1
thumbzoomheavydutydepot.com68514477236208.91In StockLovejoy208.9 @ 1
