Micro 100 QBM-118500

B00Q8LN7ZA

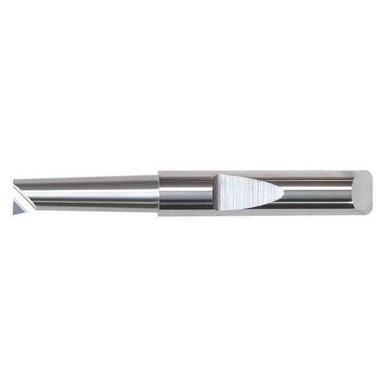

Micro 100 QBM-118500 Right Hand Quick Change Boring Tool for Milling Machine, Solid Carbide Tool, 0.118"(3.00 mm) Minimum Bore Diameter, 0.500" (12.7 mm) Maximum Bore Depth, 0.055" (1.40 mm)Tip of Centerline to Cutting Tip, 0.003" (0.08 mm) Tool Radius, 0.2500" (6.4 mm) Shank Diameter, 2"(51 mm) Overall Length

Micro 100 QBM-118500 Right Hand Quick Change Boring Tool for Milling Machine, Solid Carbide Tool, 0.118"(3.00 mm) Minimum Bore Diameter, 0.500" (12.7 mm) Maximum Bore Depth, 0.055" (1.40 mm)Tip of Centerline to Cutting Tip, 0.003" (0.08 mm) Tool Radius, 0.2500" (6.4 mm) Shank Diameter, 2"(51 mm) Overall Lengthzoom

Attributes

Key Value
ApplicationFor Mills
Bore Depth.500"
Bore Dia..118"
Boring Bar TypeBoring
BrandMicro 100
Center to Cutting Tip0.0550 in
Compatible with Product.Micro-Quik Tool Holder
Corner Radius0.003"
Country of Origin (subj.United States
Current Stock22
Cutting ApplicationBoring
Cutting DirectionRight Hand
FeaturesCoolant Fed Enabled Sha.
FinishUncoated
Finish - MachiningBright (Uncoated)
Groove Width0.0670"
International ShippingNo
ItemBoring Bar
Lead TimeExpected to ship in 1-2.
MaterialC2 Micrograin Carbide
Max. Bore Depth1/2 in
Measurement SystemFractional Inch
Min. Bore Dia.0.1180 in
MpnQBM-118500
Neck Dia.0.1100"
Offset Point0.0550 in
Overall Length2 in
Overhang0.8530 in
Projection0.0110"
Radius0.0030 in
SeriesQBM
Shank Dia.1/4 in
Shank MaterialCarbide
Side Cutting Edge Angle10 Degrees
SKUZO-G8322754
SubCategoryMachining
UPC728709154335

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG832275433.141In StockMicro 1000.0433.14 @ 1
thumbzoomSuncoast ToolsQBM11850034.65237MICRO 100 INC.0.04234.65 @ 2
thumbzoomsimsupply.comZO-G832275441.7122Micro 10041.7 @ 1
thumbzoomsustainablesupply.comC144332245.631In StockMicro 1000.0445.63 @ 1
thumbzoomRaptor SuppliesAA7CHM52.88417551In StockMICRO 10052.8841755 @ 1
