Schneider Electric HDA260501

B00CONJ29Q

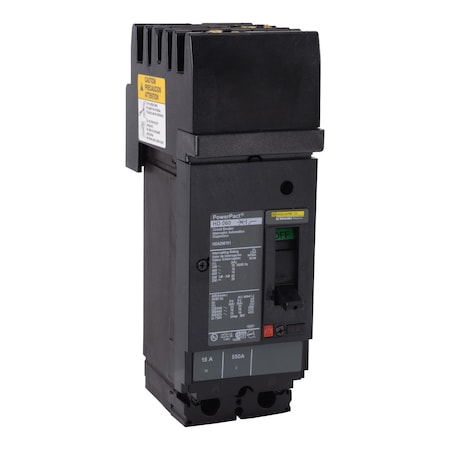

SCHNEIDER ELECTRIC 600-VOLT 50-AMP HDA260501 Molded CASE Circuit Breaker 600V 50A

SCHNEIDER ELECTRIC 600-VOLT 50-AMP HDA260501 Molded CASE Circuit Breaker 600V 50Azoom

Attributes

Key Value
AC Voltage Rating690V AC
Amperage Rating50
Amps50 A
ApplicationHACR rated Applications.
BrandSquare D, Square D by S.
Catalog NumberHDA260501
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
ConnectionAWG 14...AWG 3/0 ALUMIN.
Contactor TypeMagnetic
Country of OriginUnited States
Depth86 mm
DisplayHDA260501 Circuit break.
FeaturesMercury Free; PVC Free
FrameD
Frame SizeH
Gtin785901419020
Height163 mm, 6.42
High Amp Trip Setting850 A
Interrupt Rating25 kA at 220/240V AC, 1.
ItemCircuit breaker,PowerPa.
Item TypeCIRCUIT BREAKER
Length4.8 IN
Made in USAYes
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
MpnHDA260501
Number of Poles2
Operating Temperature40 A Degrees C
Package Quantity1
Phase1
Phase ConnectionAB
Poles2
SeriesHDA
Special FeaturesI-LINE
StandardCE-CSA-IEC-UL LISTED
StandardsUL, CSA, NEMA, NOM, CE
Sub BrandPOWERPACT
Terminal ConnectionI-Line, Lug
Trip Range400 A,50 A,850 A
Trip TypeTHERMAL-MAGNETIC, Therm.
UPC785901419020
Upc785901419020
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty DescriptionContractual Warranty:18.
Width104 mm, 4.09

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHDA260501515.01In Stock10SQUARE D515.0 @ 1
thumbzoomRadwellHDA260501560.01In StockSCHNEIDER ELECTRIC SQUARE D560.0 @ 1
Newark19K9972588.741In StockSQUARE D BY SCHNEIDER ELECTRIC588.74 @ 1
thumbzoomZoroG3978664605.991In Stock25Square D10.0605.99 @ 1
simplybreakers.comHDA260501769.991In StockSchneider Electric769.99 @ 1
thumbzoomsuperbreakers.comHDA2605011131.012Square D1131.0 @ 1
thumbzoomcrescentelectric.com113601749.711In StockSquare D by Schneider Electric1749.71 @ 1
