- mpnUN13T2BC
- brandname: US Motors
- manufacturername: US Motors

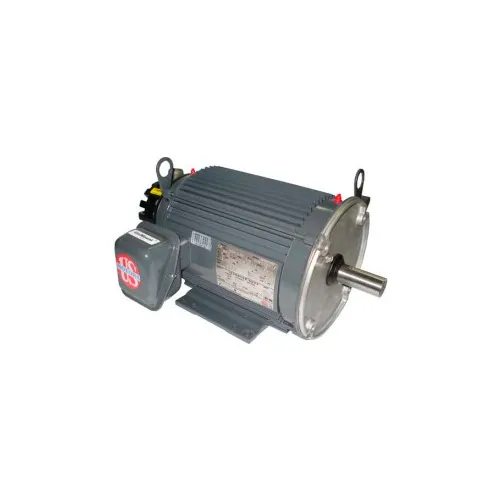

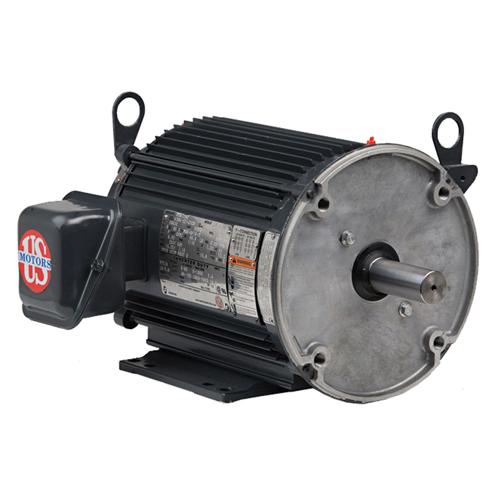

U.S. Motors US Motors ACCU-Torq Vector Duty, 0.33 HP, 3-Phase, 1760 RPM Motor, UN13T2BC
- Brand: U.S. Motors
- PartNumber: UN13T2BC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 1.1/0.6 |
| Base Type | Removable |
| Bearings | Ball |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 81.5% |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Type | TENV (Totally Enclosed . |
| Encoder Acceptable | Yes |
| Estimated Weight | 19.80 |
| Family Series | US Motors Motors |
| FL Amps | 1.1/0.6 |
| FL Efficiency | 81.5 |
| Frame | 56C, 56 |
| Frequency | 60 Hz |
| Full Load Amps | 1.10/0.60 |
| Gross Weight | 40 lbs |
| Hertz | 60 |
| Horsepower | 1/3 hp |
| HP | 0.33, 1/3 |
| Hz | 60 |
| Includes | D-Flange Convertible Kit |
| Ins. Class | F |
| Insulation Class | F |
| Item | Vector Motor |
| Item Number | UN13T2BC |
| Kilowatts | 0.2 kW |
| Length Less Shaft | 12 7/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FD88 |
| Manufacturer Part Number | UN13T2BC |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 104 Degrees F |
| Max. Operating Frequency | 60 Hz |
| Max. Speed | 1,745 RPM |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FD88 |
| Motor Application | Cranes and Hoists, Indu. |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonven. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | Foot Mount |
| Nameplate RPM | 1,760 |
| NEMA Design | A |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 81.5 % |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 12 1/2 in |
| Part Number | UN13T2BC |
| Phase | 3, Three |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1760, 1,760 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.00 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/16 in |
| Ship Weight | 40 lbs. |
| Speed (RPM) | 1760 |
| Speed Range | 5000:1 |
| Torque | 1 ft-lb |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 230V, 460V, 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 230, 460 |
| Weight | 40 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1932221 | 289.0 | 1 | In Stock | | U.S. Motors | 40.0 | 289.0 @ 1 |
 | Global Industrial | WBB468073 | 339.95 | 1 | In Stock | 17 | US Motors | | 339.95 @ 1 |
 | emotorpro.com | UN13T2BC | 378.98 | 1 | In Stock | | U.S. Motors | 40.0 | 378.98 @ 1 |
 | National Supply Network | B468073 | 383.94 | 1 | In Stock | | US MOTORS | | 383.94 @ 1 |
 | motorsandcontrol.com | UN13T2BC | 386.65 | 1 | In Stock | | US Motors (Nidec) | 19.8 | 386.65 @ 1 |
 | Galco | UN13T2BC-USM | 386.66 | 1 | In Stock | | US Motors | 40.0 | 386.66 @ 1 |
| motionindustries.com | 04030778 | 711.93 | 1 | In Stock | | US Motors (Nidec) | | 711.93 @ 1 |
