- mpnA2XBM0242C21000#G
- brandname: Ashcroft
- manufacturername: Ashcroft

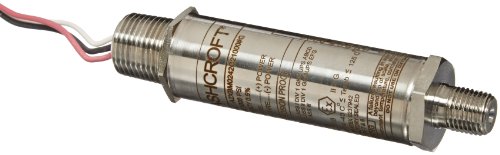

Ashcroft Type A2X 304 Stainless Steel Case Explosion/Flame Proof Pressure Transmitter, 0.5% Accuracy, 1/4" NPT Male Connection, 4-20mA Output, With 3' Flying Leads, Gauge Pressure Sensor, 0/1000 psi Pressure Range
- Brand: ASHCROFT
- PartNumber: A2XBM0242C21000#G
- Model: A2XBM0242C21000#G
- Size: 0/1000 psi
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Ashcroft Inc.
- Label: Ashcroft Inc.
Attributes
| Key | Value |
|---|
| (hidden) product type b. | ASHCROFT A2XBM0242C2100. |
| Accuracy | +/-0.3% |
| Accuracy - Transmitter | +/-0.25% |
| Burst Pressure | 1.5x Range |
| Cable Length | 3 ft |
| Calibration Certificate | - |
| Compatible With | Any Process Compatible . |
| Country of Origin (subj. | United States |
| Electrical Connection | Cable & Wire Leads ; 1/. |
| Electrical Connections | 1/2" NPT Male Conduit |
| Electrical Connections . | 3 ft Cable |
| Enclosure Rating | IP65 ; NEMA 4X; NEMA 7;. |
| Explosion/Fire Proof | Yes |
| Features | - |
| Fitting Material | Stainless Steel |
| For Use With | - |
| Housing | 304 Stainless Steel |
| Housing Material | Stainless Steel |
| Includes | Instructions |
| Intrinsically Safe | Yes |
| IP Rating | IP65 |
| Item | Pressure Transmitter |
| Lead Length (In.) | 36 |
| Loop Resistance | Dependent on Loop Suppl. |
| Manufacturers Warranty . | 1 yr |
| Max. Pressure (PSI) | 2,000 psi |
| Maximum Operating Tempe. | 257 Degrees F |
| Maximum Pressure | 1,000 psi |
| Minimum Operating Tempe. | -40 Degrees F |
| Minimum Pressure | 0 psi |
| NEMA Rating | 7 and 9 |
| Number of Wires | 2 |
| Operating Temp. | -40 to 257 F |
| Operating Temp. - Trans. | -40 Degrees to 257 Deg. |
| Output | 4 to 20 mA at 12 to 30V. |
| Output - Transmitter | 4 to 20mA DC |
| Overall Height | 4.78 in |
| Overall Length | 1.06 in |
| Overall Width | 1.06 in |
| Overpressure | 1.2x Range |
| Power Required | 12 to 30VDC |
| Power Required - Transm. | 12 to 30V DC |
| Pressure Range | 0 psi to 1,000 psi |
| Pressure Units | psi |
| Process Connection | 1/4 in NPT Male |
| Process Connection Gend. | Male |
| Process Connection Size | 1/4 in |
| Process Connection Size. | 1/4 in |
| Process Connection Type | NPT |
| Process Connection Type. | MNPT |
| Product Type | Explosion-Proof-Rated T. |
| Range | 0 to 1000 psi |
| Range Units - Transmitt. | psi |
| Range Values - Transmit. | 0 to 1000 |
| Response Time | 2 msec |
| Safety Rating | Class 1, Div. 1 and 2, . |
| Safety Rating - Transmi. | Class I, Div. 1 and 2, . |
| Series | A2X |
| Standards | ATEX, CE, CSA, cUL List. |
| Storage Temperature Ran. | -40 Degrees F to 257 De. |
| Thermal Error | +/-2% (-4 Degrees to 1. |
| Transmitter Type | Explosion Proof Pressur. |
| Type of Pressure | Gauge |
| Wetted Materials | 316L Stainless Steel |
| Wetted Materials - Tran. | 316L Stainless Steel |
| Wiring Entry | 1/2 in FNPT Conduit Con. |
| Wiring Entry - Transmit. | 1/2 in FNPT |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0120574 | 423.92 | 1 | In Stock | 26 | Ashcroft | 0.54 | 423.92 @ 1 |
 | Raptor Supplies | AE3GJW | 991.849248 | 1 | In Stock | | ASHCROFT | | 991.849248 @ 1 |
