Cleveland Twist Drill C42512

mpnC42512
brandname: CLEVELAND
manufacturername: CLEVELAND

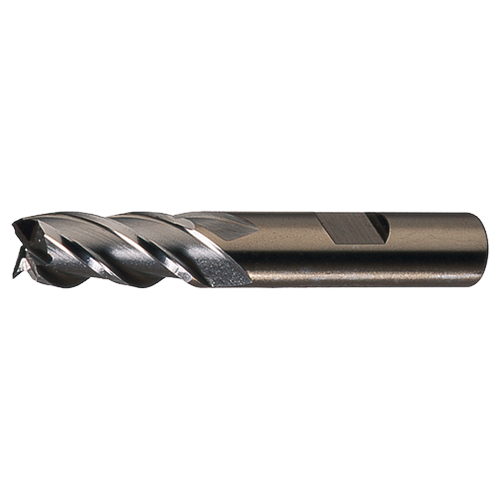

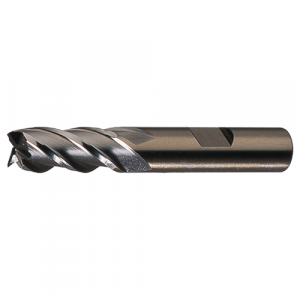

Cleveland C42512 5/8 X 15/8 Ctd Pm Co Sem C/C 4fl

Cleveland C42512 5/8 X 15/8 Ctd Pm Co Sem C/C 4fl

zoom

Brand: Cleveland Twist Drill
PartNumber: C42512
Manufacturer: Cleveland
Label: Cleveland

Attributes

Key	Value
# of Flutes	4
Cast Iron (K) Compatibi.	Yes
Chip-Breaker	No
Corner Radius	0.000 in
Country of Origin (subj.	United States
Cutter Diameter	5/8 in
Cutting Direction	Right Hand
Cutting Direction - Mac.	Right Hand
Diameter (in)	0.6250
Diameter (mm)	15.88
Dimension Type	Fractional Inch
Drilling Tool Configura.	Individual
End Mill Application	Finishing
End Mill Cutting Type	Center Cutting
End Mill Material	Powdered Metal
End Mill Style	Square
Finish	Bright, Bright (Uncoate.
Finish - Machining	Bright (Uncoated)
Flute Type	Spiral
Grade	Heavy Duty
Hardened (H) Compatibil.	Yes
Helix Angle	37 deg, 37 Degrees
Item	Square End Mill
Length of Cut	1-5/8 in, 1 5/8 in
Length of Cut (in)	1.6250
Length of Cut (mm)	41.27
List Number	PM-4
Material	HSS-E (PM), PM HSS-E
Material - Machining	Powdered Metal
Material Grade - Machin.	Heavy Duty
Measurement System	Fractional Inch
Milling Dia.	5/8 in
Milling Diameter	5/8"
Neck Dia.	Not Applicable
Neck Length	Not Applicable
Non Ferrous (N) Compati.	No
Number of Flutes	4
Overall Length	3 3/4 in, 3-3/4 in
Overall Length (in)	3.7500
Overall Length (mm)	95.25
Primary Material Applic.	Cast Iron
Primary Material Applic.	K
Series	PM-4
Shank Dia.	5/8 in
Shank Diameter	5/8 in
Shank Diameter (in)	0.6250
Shank Diameter (mm)	15.88
Shank Type	Straight/Weldon Flat, W.
Shank Type - Machining	Weldon Flat
Single End/Double End	Single End
Size	5/8"
Stainless (M) Compatibi.	Yes
Steel (P) Compatibility	Yes
Style	PM-4
Super Alloy (S) Compati.	Yes
Surface Condition	Bright
Tool Size	5/8" x 5/8" x 1-5/8" x .
Type	Center Cutting Single E.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6117011	48.28	1	In Stock		Cleveland		48.28 @ 1
	Megadepot	C42512	57.66	1	In Stock		Cleveland		57.66 @ 1
	Zoro	G2977359	59.49	1	In Stock		Cleveland	0.29	59.49 @ 1
	usmegastore.com	C42512	60.0	1	In Stock		Cleveland		60.0 @ 1
	bscsource.com	C42512	67.99	1	In Stock		Cleveland		67.99 @ 1
	sustainablesupply.com	C2770395	72.86	1	In Stock		Cleveland	0.28	72.86 @ 1
	Guardian	87433595	134.84	1	In Stock		Cleveland		134.84 @ 1
	National Supply Network	87433595	145.61	1	In Stock		Cleveland		145.61 @ 1
