ILSCO TA-350

mpnTA-350
brandname: ILSCO
manufacturername: ILSCO

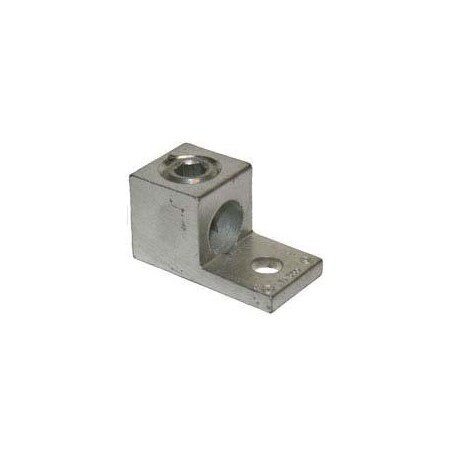

Ilsco TA-350 AL MECH 350-6 13/32 T UL CSA, Silver

Brand: ILSCO
PartNumber: TA-350
Model: TA-350
Color: Silver
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Ilsco
Label: Ilsco

Attributes

Key	Value
Allowable Gauge Range	4 - 350
Bag Quantity	1
Carton Quantity Descrip.	STD PACK QTY 25
Color	Silver
Color Family	Silver
Conductor Material	Aluminum, Copper
Conductor Range AL Stra.	350 kcmil - 6 Str
Conductor Range CU Stra.	350 kcmil - 6 Str
Conductor Type	Stranded
Connection	Mechanical
Connector Finish	Tin
Contains DE-OX?	No
Country of Origin	MX - Mexico
Country of Origin (subj.	Unknown
CSA File Number	LR-29601
CSA Standard	C22.2 No. 65-03
Dimension G (IN)	0.5
Direct Burial	No
Drive Size Main	3/8
Drive Type Main	Internal Hex
Dual Rated	Yes
ECCN	EAR99
Height	1.25 in., 1.25 in \| 31..
Height (mm)	31.75
Height BX (IN)	3.75
Length	2.25 in \| 57.15 mm, 2.2.
Length (mm)	57.15
Lug Wire Size	6 AWG-350 kcmil
Material	Aluminum
Mounting	1-Hole
Mounting Bolt/Stud Size	3/8
Mounting Bolt/Stud Size.	965.2
Mounting Hole Diameter .	0.406
Mounting Hole Diameter .	10.3124
Mounting Hole Spacing (.	0
Mounting Hole Type	Thru
NEMA Code	S-588-3
Number of Conductors	1
Number of Mounting Holes	1
Number of Poles	1
Number of Ports / Wirew.	1
Number of Wire Binding .	1
Prop65 Compliance	This product is in comp.
ROHS Indicator	IND
Standards	California Proposition .
Stud Size	3/8 in, 3/8 in.
Tang Length (IN)	1.125
Tang Length (mm)	28.575
Tang Thickness (IN)	0.25
Tang Thickness (mm)	6.35
Tang Width (IN)	1.125
Tang Width (mm)	28.575
Temperature Rating	90?C
Type	Mechanical, Lug
UL / CULUS Specification	UL 467 Listed, UL 486A/.
UL Control Number	453G
UL File Number	E6207
UNSPSC	39121408
UPC Code	78366988993
Use With	Aluminum and Copper Con.
Voltage Rating	35 kV
Weight	0.163 lbs
Weight BX (LB)	4.285
Width	1.125 in., 1.125 in \| 2.
Width (mm)	28.575
Width BX (IN)	6
Wire Binding Hardware F.	Tin
Wire Binding Hardware M.	Aluminum
Wire Binding Screw Size	3/4
Wire Binding Torque	375

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
gordonelectricsupply.com	TA-350	4.69	1	5		ILSCO		4.69 @ 5
Zoro	G6502039	5.73	2	5	2	Ilsco		5.73 @ 5
AmazonTP	B00D3Q61AQ	7.26	1	5	3	Ilsco		7.26 @ 5
Platt.com	0029358	10.49	1	774		Ilsco		10.49 @ 5
electricalparts.com	TA-350	10.5504	1	214		Ilsco		10.5504 @ 5
mayerelectric.com	ILSTA350	18.97	1	5		ILSCO	0.163	18.97 @ 5
Graybar	88138295	20.8096	1	5		ILSCO		20.8096 @ 5
standardelectricsupply.com	19510	430.25	1	5		Ilsco		430.25 @ 5
