Lovejoy 68514477224

mpn68514477224
brandname: LOVEJOY
manufacturername: LOVEJOY

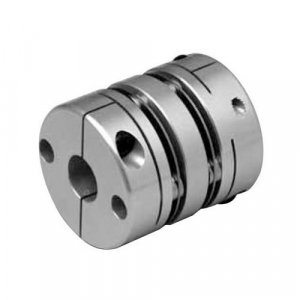

Lovejoy 77224 Size MD-40C Mini Disc Clamp Style Coupling, Complete Coupling, 0.5" Bore A, 0.5" Bore B, 1.575" OD, 1.732" Length, 5000 rpm Max Rotational Speed, 31 in-lbs Nominal Torque

Lovejoy 77224 Size MD-40C Mini Disc Clamp Style Coupling, Complete Coupling, 0.5" Bore A, 0.5" Bore B, 1.575" OD, 1.732" Length, 5000 rpm Max Rotational Speed, 31 in-lbs Nominal Torque

zoom

Brand: Lovejoy
PartNumber: 68514477224
Size: 0.5 inches
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
# of Jaws	3
Bore Size	1-3/4 in
Color	Gray/Metallic
Coupling	C280
Coupling Type	Jaw
Cubic inches	267.18750 in
Dimension CD	7.810 in 198.37 mm
Dimension CL	0.120 in 3.05 mm
Dimension G	1.630 in 41.40 mm
Dimension HD	5.500 in 139.70 mm
Dimension SL	1.560 in 39.62 mm
Elastomeric Member	SOX (NBR) Rubber
Hub Style	3
Keyway Size (W x D)	3/8 x 3/16 in
Length thru Bore	3.120 in 79.25 mm
Material	Cast Iron
Max. Bore (Dimensions I.	3.000 in 76 mm
Max. Speed	3500 rpm
Min. Bore (Dimensions I.	1.250 in 32.00 mm
Moment of Inertia WR2	362.000 lb in
Nominal Torque	7560.00 in lb
Outside Diameter	7.500 in 190.50 mm
Overall Length of Hub	4.750 in 120.65 mm
Rated HP at 1,200 rpm	114.00 hp
Rated HP at 1,800 rpm	216.00 hp
Rated HP at 100 rpm	12.00 hp
Thread (Dimension T)	1/2-13
Weight	26.50 lb
Weight (Complete Coupli.	61.00 lb
Weight (Complete Coupli.	49.00 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	68514477224	192.1	1	In Stock		Lovejoy	26.5	192.1 @ 1
	heavydutydepot.com	68514477224	223.2	1	In Stock		Lovejoy		223.2 @ 1
