Lovejoy 68514477230

B004QWZI5A

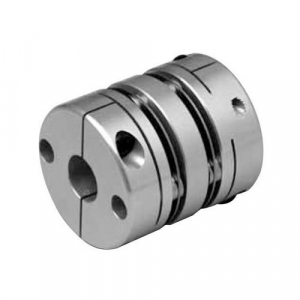

Lovejoy 77230 Size MD-50C Mini Disc Clamp Style Coupling, Complete Coupling, 0.375" Bore A, 0.5" Bore B, 1.969" OD, 2.244" Length, 4000 rpm Max Rotational Speed, 80 in-lbs Nominal Torque

Lovejoy 77230 Size MD-50C Mini Disc Clamp Style Coupling, Complete Coupling, 0.375" Bore A, 0.5" Bore B, 1.969" OD, 2.244" Length, 4000 rpm Max Rotational Speed, 80 in-lbs Nominal Torquezoom

Attributes

Key Value
# of Set Screws Require.1
Bore Size5/8 in
Bore TypeFinished Bore
ColorGray/Metallic
CouplingRRU50
Coupling TypeDrop-Out
Cubic inches4.00000 in
Dimension BC1.500 in 38.10 mm
Dimension D1.880 in 47.75 mm
Dimension FD2.000 in 50.80 mm
Dimension FL10.250 in 6.35 mm
Dimension HD2.000 in 50.80 mm
Dimension HL1.000 in 25.40 mm
Dimension S1.560 in 39.62 mm
Hub StyleRRU Hub
Keyway Size (W x D)3/16 x 3/32 in
MaterialSteel
Max. Angular Offset4.50 ?
Max. Bore (Dimensions I.1.000 in 25.40 mm
Max. Parallel Offset0.021 in, 0.53 mm
Max. Recommended End Pl.0.035 in, 0.89 mm
Max. Speed30000.00 rpm
Max. Torque82.00 in lb, 82 in lb
Min. Bore (Dimensions I.0.375 in 9.53 mm
Normal Temperature Range-40 to 240 ?F
Overall Length3.520 in 89.41 mm
Pin Location (Dimension.0.500 in
Pin Size1/8 in
Rated HP at 100 rpm0.13 hp
Set Screw Thread Size (.1/4-20
Weight0.60 lb
Wind-Up Angle at Max. T.1.82 ?

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514477230207.61In StockLovejoy0.6207.6 @ 1
thumbzoomheavydutydepot.com68514477230219.31In StockLovejoy219.3 @ 1
