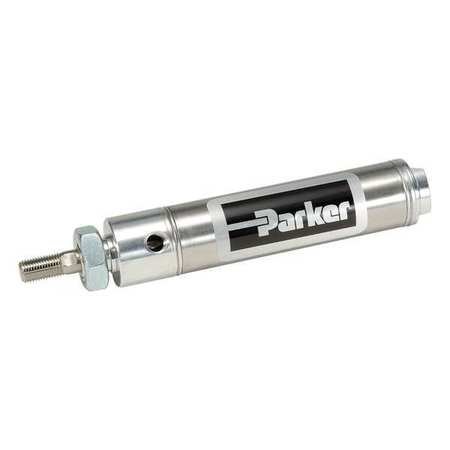

PARKER 1.06DSRM02.00

Round Air Cylin, 1-1/16InBore, 2InStroke

Round Air Cylin, 1-1/16InBore, 2InStrokezoom

Attributes

Key Value
Air Cylinder Bore Dia.1 1/16 in
Air Cylinder MountNose
Air Cylinder TypeRound Body
Body MaterialStainless steel
Bore Dia.1 1/16 in
BrandParker
Country of Origin (subj.United States
Cushion TypeNone
Cylinder ActionDouble Acting
Cylinder TypeRound Non-Repairable
Dimension A1/2 in
Dimension B0.624 in
Dimension C0.12 in
Dimension Cc0.312 in
Dimension D0.25 in
Dimension E0.88 in
Dimension J0.19 in
Dimension Kk5/16"-24 UNF
Dimension N15/8"-18
End Cap MaterialAluminum
FeaturesSwitch Ready
FinishSilver
International ShippingNo
ItemAir Cylinder
Magnetic PistonYes
Max. Pressure250 psi
MountNose
Mpn1.06DSRM02.00
Nose Mount Thread5/8"-18
Overall Length5.9 in
Piston MaterialAluminum
Piston Rod MaterialStainless steel
Port Size1/8 in FNPT
Prop 65WARNING: Cancer and Rep.
Rod Dia.0.312 in
Rod Thread Length0.5 in
Rod Thread Size5/16-24 UNF
Single Acting/Double Ac.Double Acting
SKUZO-G6072202
Stroke2 in
SubCategoryPneumatics
Temp. Range14 Degrees to 140 Degr.
Tube MaterialStainless steel

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG607220241.8517Parker0.4541.85 @ 1
thumbzoomWilson1.06DSRM02.0042.851In StockParker - Pneumatic Division42.85 @ 1
thumbzoomsustainablesupply.comC168528354.681In StockParker0.4554.68 @ 1
thumbzoombscsource.com106DSRM020057.491In StockParker57.49 @ 1
thumbzoomsimsupply.comZO-G607220263.611In StockParker63.61 @ 1
AmazonSCB01LZGA0AF64.821In StockParker64.82 @ 1
thumbzoomNational Supply Network8549489669.271In StockParker69.27 @ 1
thumbzoomGuardian8549489680.541In StockParker80.54 @ 1
thumbzoomRaptor SuppliesAJ2EFB85.4325811In StockPARKER85.432581 @ 1
