TE Raychem 826631-8

mpn826631-8
brandname: TE Connectivity
manufacturername: TE Connectivity

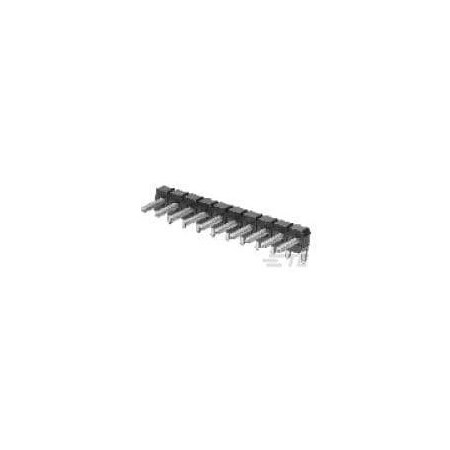

TE Raychem Connector

TE Raychem Connector

zoom

Brand: TE Raychem
PartNumber: 826631-8
Manufacturer: TE Raychem
Label: TE Raychem

Attributes

Key	Value
Applications	-
Base Product Number	826631
Category	Connectors, Interconnec.
Connector	pin header
Connector pinout layout	1x8
Connector series	AMPMODU MOD II
Connector Type	Header, Breakaway
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	3.90?in (0.099?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.264" (6.70mm)
Contact Length - Post	0.126" (3.20mm)
Contact Material	Brass
Contact plating	selectively gold plated
Contact Shape	Square
Contact Type	Male Pin
Contacts pitch	2.54mm
Country of Origin (subj.	Poland
Current Rating (Amps)	5A
Electrical mounting	THT
Fastening Type	Push-Pull
Features	-
Height	6.7mm
Ingress Protection	-
Insulation Color	Green
Insulation Height	0.120" (3.05mm)
Insulation Material	Polybutylene Terephthal.
Kind of connector	male
Leads dimensions	L 3.2mm
Manufacturer	TE Connectivity
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole, Right Ang.
Number of pins	8
Number of Positions	8
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-65?C ~ 105?C
Overall Contact Length	-
Package	Bulk
Pitch - Mating	0.100" (2.54mm)
Product Status	Active
Row Spacing - Mating	-
Series	AMPMODU MOD II
Shrouding	Unshrouded
Spatial orientation	angled 90?
Style	Board to Board or Cable
Termination	Solder
Type of connector	pin strips
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Digi-Key	2276124	0.56376	4800	100		TE Connectivity AMP Connectors		0.56376 @ 4800
	Newark	19R9489	0.629	4800	100		AMP - TE CONNECTIVITY		0.629 @ 4800
	TME	826631-8	0.79	10	100		TE Connectivity		0.79 @ 100
	Mouser	571-826631-8	0.857	1	4095		TE Connectivity		0.857 @ 100
	Zoro	G601045100	1.02	2400	100		Te Connectivity		1.02 @ 2400
	RS Delivers	668-9457P	1.2984	1	100		TE Connectivity		1.2984 @ 100
	Onlinecomponents.com	826631-8	1.35	20	100		TE Connectivity		1.35 @ 100
