TE Raychem 122373-000

B07NQSJL51

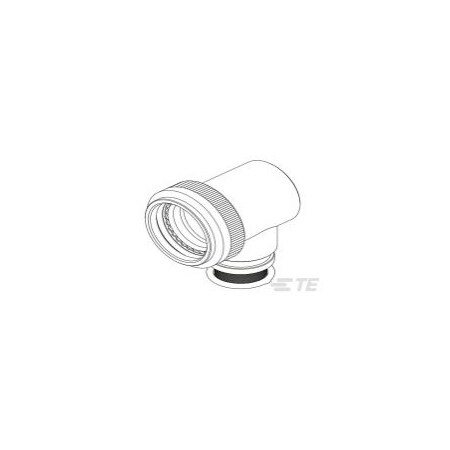

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Adapter Angle90
Adapter Entry Size4
Adapter Plating MaterialCadmium (AMS-QQ-P-416, .
Backshell MaterialAluminum
Base Product NumberTXR41AB90
Cable Diameter Range3.2 ? 5.1 mm[.125 ? .2 .
Cable Entry Diameter.2 ? 6.4 mm[.01 ? .25 i.
Cable Exit90?
Cable Opening-
CategoryConnectors, Interconnec.
ColorOlive Drab
Connector Detail Specif.MS24266, MS27467, MS274.
Connector General Speci.MIL-DTL-38999 Series I,.
Connector Shell Size08,09
DescriptionCONN BACKSH ADPT SZ8 9 .
Detailed DescriptionOlive Drab Connector Ba.
Diameter - Outside0.720" (18.29mm)
Digi-Key Part NumberTXR41AB90-0804AI-ND
FeaturesTinel Lock
For Use With/Related Pr.MIL-DTL-38999 Series I,.
Includes4 pcs - 1 Backshell, 1 .
Ingress Protection-
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.TXR41AB90-0804AI
Manufacturer Standard L.26 Weeks
MaterialAluminum Alloy
Material Flammability R.-
MfrTE Connectivity Aerospa.
Operating Temperature R.-65 ? 175 ?C[-85 ? 347 .
Overbraid TerminationTinel-Lock Ring
PackageBulk
Package Quantity1
PlatingCadmium
Pluggable I/O Accessory.Tinel-Lock Adapter
Product StatusActive
Salt Spray Resistance500 Hr
SeriesTXR, Raychem TXR
Shell Size - Insert8, 9
ShieldingShielded
TE Adapter Code41
Termination Device Incl.TR04AI
Termination Device TypeSide-Entry Tinel-Lock R.
Thread Size7/16-28 UNEF
TypeBackshell, Heat Shrink .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comTXR41AB90-0804AI118.9117TE Connectivity / Raychem Brand118.9 @ 1
Newark44M2583136.0425In StockRAYCHEM - TE CONNECTIVITY136.04 @ 25
thumbzoomDigi-Key2394749150.919625In StockTE Connectivity Aerospace, Defense and Marine150.9196 @ 25
thumbzoomZoroG500961983265.991In StockRaychem265.99 @ 1
