Weg Electric 06018ET3ER364TC-W22

B07BQHDSCY

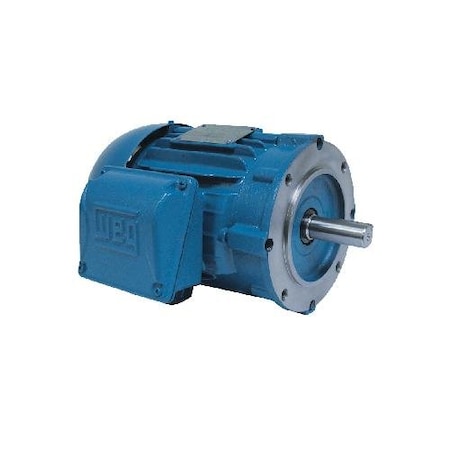

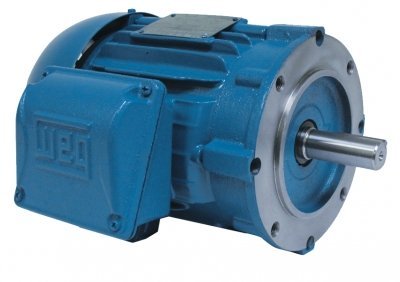

WEG Electric 06018ET3ER364TC-W22, 60HP, 1800 RPM, 3PH, 230V/460V, 364/5TC Frame, C-Face Flange, Footless, TEFC, Severe Duty Motor

WEG Electric 06018ET3ER364TC-W22, 60HP, 1800 RPM, 3PH, 230V/460V, 364/5TC Frame, C-Face Flange, Footless, TEFC, Severe Duty Motorzoom

Attributes

Key Value
Amperage Rating68.3 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase Pr
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 60HP 4P 364/5TC W.
Dimensions37.44 in L
Drive End Flange TypeC-Face
Efficiency %95 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight869.00
Family SeriesWEG Electric Motors
FL Amps68.3
FL Efficiency95.0
FlangesWithout
FRAME364/5TC
Frame364/5TC, 364TC
Frame MaterialCast Iron
Frame RemarksRound Body, Footless
Frequency60 Hz
Frequency Rating50 Hz
Full Load Amps68.3
Gross Weight0 lbs
Hertz60
Horsepower60 hp
HP60
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number06018ET3ER364TC-W22
Kw45
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number06018ET3ER364TC-W22
MaterialCast Iron
MFG Part #:06018ET3ER364TC-W22
Model14335223
Motor Enclosure DesignTEFC
Motor Mounting TypeFootless
Motor Service Factor1.25
MountingFoot-mounted (F-1), Foo.
Mounting TypeC-Face Footless, Footle.
Nameplate RPM1800
NEMA Frame364/5TC
Net Weight0 lbs
Nominal Efficiency95
Nominal Voltage240 VAC
Number of Poles4
Number of Speeds1
Output Rating25 HP
Overall Length37.44
Part Number06018ET3ER364TC-W22
Phase3, 3 ph
Product TypeSevere Duty
RPM1,800 RPM, 1700 - 1800,.
Service Factor1.25
Speed1800 rpm
Speed (RPM)1800
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7899058026529
Variable Torque Speed R.1000:1
VOLTAGE230/460
Voltage230V, 460V, 575 V, 230/.
Voltage (AC)230 VAC
Voltage Rating230/460 VAC
Volts208-230/460*
WEIGHT869

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com06018ET3ER364TC-W224349.01In StockWEG898.04349.0 @ 1
thumbzoomWalker Industrial06018ET3ER364TC-W226039.751In Stock17WEG6039.75 @ 1
thumbzoommotorsandcontrol.com06018ET3ER364TC-W226039.751In StockWEG Electric869.06039.75 @ 1
kscdirect.comWEG 06018ET3ER364TC-W226184.491In StockWEG ELECTRIC CORP6184.49 @ 1
thumbzoomMRO Supply28540536200.811In StockWEG6200.81 @ 1
thumbzoomindustrialrefrigerationparts.com06018ET3ER364TC-W226326.131In StockWEG6326.13 @ 1
thumbzoomGalco06018ET3ER364TC-W22-WEG6614.21In StockWEG Electric6614.2 @ 1
thumbzoomZoroG3034352306893.121In Stock11Weg869.06893.12 @ 1
thumbzoomDealers Electric06018ET3ER364TC-W227352.481In StockWeg700.07352.48 @ 1
thumbzoomvfds.com06018ET3ER364TC-W228053.01In StockWEG8053.0 @ 1
motionindustries.com0697627610329.571In StockWEG Electric Corporation10329.57 @ 1
