- mpn36GL12
- brandname: DAYTON
- manufacturername: DAYTON

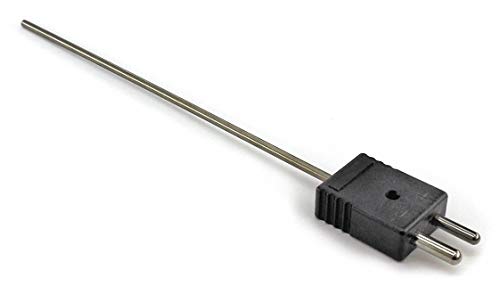

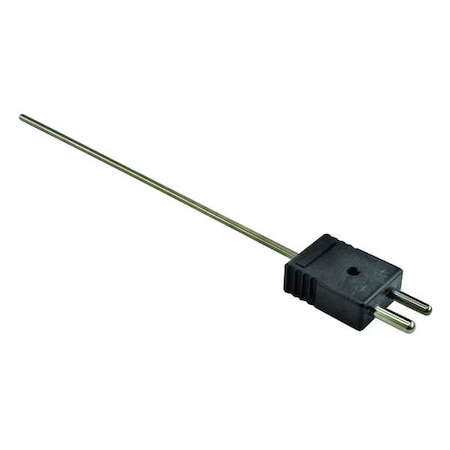

Dayton Thermocouple Probe, Thermocouple Type: J, Temp. Limit (Deg. F): 1650, 6.0" Probe Length
- Brand: Dayton
- PartNumber: 36GL12
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Accuracy | +/-0.4 Over 293 Degrees. |
| Brand | Dayton |
| Cable Length | 6 in |
| Cable Material | Magnesium Oxide Insulat. |
| Connector Type | Standard Plug |
| Construction | Metal Insulated Cable |
| Current Stock | 47 |
| Error Accuracy (%) | (Over 293 Degrees C) +/. |
| Error Accuracy (Deg. C) | +/-1.1 Below 293 Degrees |
| Fitting Type | Compression |
| For Air | Yes |
| For Application | Air, Gas, Liquid |
| For Gases | Yes |
| For Liquids and Gels | Yes |
| For Solids | No |
| For Surfaces | No |
| Grounded / Ungrounded | Grounded |
| Head Connection | 1/16 in MNPT, 1/2 in MN. |
| Head Material | 304 Stainless Steel |
| Includes Thermowell | No |
| Insulation | Magnesium Oxide |
| International Shipping | No |
| Item | Thermocouple Probe |
| Junction Type | Grounded |
| Lead Time | Expected to ship in 1-2. |
| Material | 304 Stainless Steel |
| Max. Pressure (PSI) | 1,000 psi |
| Maximum Temperature ?C | 1,200 Degrees C |
| Maximum Temperature ?F | 2,193 Degrees F |
| Maximum Wire Gauge | 20 AWG |
| Minimum Temperature ?C | -210 Degrees C |
| Minimum Temperature ?F | -346 Degrees F |
| Mounting Type | Hose Clamp, Weld Pad |
| Mpn | 36GL12 |
| Plug or Connector Type | Standard Plug |
| Probe Bend | Straight |
| Probe Diameter | 0.125 in |
| Probe Length | 6 in |
| Probe Sheath Material | 304 Stainless Steel |
| Probe Size | 1/8 in x 6 in |
| Probe Tip Diameter | 0.125 in |
| Process Mounting | 1/4 in MNPT, 1/8 in MNPT |
| Response Time | 0.5 sec |
| Sensor Type | Thermocouple |
| Sheath Size (In.) | 0.125 in |
| SKU | ZO-G0025527 |
| Standards | ANSI |
| SubCategory | Test Instruments |
| Temp. Limit (Deg. F) | 1,650 |
| Temperature Range | -346 Degrees to 2,913 . |
| Thermocouple Element | 22 AWG |
| Thermocouple Type | Type J |
| Tip Style | Rounded |
| UPC | 190735274712 |
