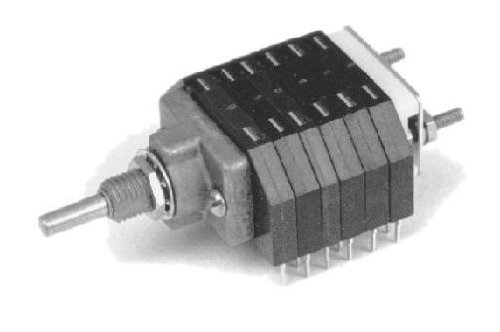

Electroswitch Inc. C3P0304N-A

mpnC3P0304N-A
brandname: Electroswitch Inc.
manufacturername: Electroswitch Inc.

C3P0304N-A

C3P0304N-A

zoom

Brand: Electroswitch Inc.
PartNumber: C3P0304N-A
Model: Electronic Components
PackageQuantity: 1
Manufacturer: Electroswitch
Label: Electroswitch

Attributes

Key	Value
AC Voltage	125 V
Actuator Length	9.52mm
Actuator Type	Flatted (3.17mm Dia), F.
Alternate Part No.	690-C3P0304N-A
Angle of Throw	30?
Base Product Number	C3P0304
Brand	Electroswitch
Category	Switches
Circuit per Deck	3P4T
Contact Finish	Silver
Contact Form	3P4T
Contact Material	Brass
Contact Plating	Silver
Contact Style	Non Shorting
Contact Timing	Non-Shorting (BBM)
Current Rating	250 mA, 0.1 A
Current Rating (Amps)	100mA (AC), 250mA (DC)
DC Voltage	28 V
Depth	0.881 in
Depth Behind Panel	22.38mm
Description	SWITCH ROTARY 2-4POS 10.
Detailed Description	Rotary Switch 2 ~ 4 Pos.
Dielectric Strength	1000 VAC
Digi-Key Part Number	451-1008-ND
Features	-
Function	Non-Shorting (BBM)
Index Angle	60 deg
Index Stops	Adjustable
Indexing	Adjustable
Insulation Material	Polyester
Manufacturer	Electroswitch
Manufacturer Part No.	C3P0304N-A
Manufacturer Product Nu.	C3P0304N-A
Manufacturer Standard L.	13 Weeks
Mechanical Life	25000 Cycle
Mfr	Electroswitch
Mounting Hole Size	0.25 in
Mounting Type	Panel Mount, Through Ho.
Number of Decks	1
Number of Poles	3
Number of Poles per Deck	3
Number of Positions	4, 2 ~ 4, 2 to 4
Operating Force	Polyester
Package	Bulk
Panel Cutout Dimensions	Circular - 6.76mm Dia
Product Category	Rotary Switches
Product Status	Active
Series	C3 Series, C3
Special Features	Flat Shaft
Termination	PCB Pins
Termination Style	PC Pin, Lug
Type	Rotary
Voltage Rating	28 V, 125 VAC
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V
Voltage Rating AC	125 V
Voltage Rating DC	28 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	C3P0304N-A	24.12	1	1		ELECTROSWITCH		24.12 @ 1
	us.rs-online.com	70152408	36.94	1	In Stock		Electroswitch Inc.		36.94 @ 1
	Digi-Key	514062	44.04	1	In Stock		Electroswitch		44.04 @ 1
	swatee.com	C3P0304N-A	45.08	1	In Stock		Electroswitch		45.08 @ 1
	Newark	92F2730	56.34	1	In Stock		ELECTROSWITCH		56.34 @ 1
