Lovejoy 68514477191

B004QWZIBE

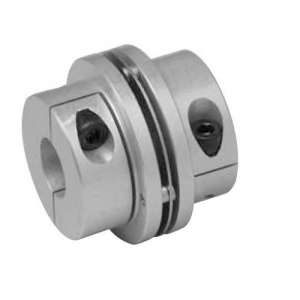

Lovejoy 77191 Size MDSD-40C Mini Disc Clamp Style Coupling, Single Disc, Complete Coupling, 0.313" Bore A, 0.313" Bore B, 1.575" OD, 1.496" Length, 3800 rpm Max Rotational Speed, 35 in-lbs Nominal Torque

Lovejoy 77191 Size MDSD-40C Mini Disc Clamp Style Coupling, Single Disc, Complete Coupling, 0.313" Bore A, 0.313" Bore B, 1.575" OD, 1.496" Length, 3800 rpm Max Rotational Speed, 35 in-lbs Nominal Torquezoom

Attributes

Key Value
Angular Misalignment1 ?
ApplicationMotion Control
Axial Misalignment? 0.20 in
Bore A0.313 in
Bore B0.313 in
Bore TypeFinished Bore
Clamp Screw SizeM4
Coupling SizeMDSD40C
Cubic inches3.71102 in3
Dimension HD1.102 in (28.00 mm)
Disc MaterialStainless Steel
Hub MaterialAluminum
Keyway SizeNo Keyway
Length thru Bore0.650 in (16.50 mm)
Max. Bore (Dimensions I.0.551 in (14.00 mm)
Max. Operating Temperat.300.00 ?F
Min. Bore (Dimensions I.0.236 in (6 mm)
Moment of Inertia0.0410 lb-in2
Nominal Torque35.00 in-lb
Outside Diameter1.575 in (40.00 mm)
Overall Length1.496 in (38.00 mm)
StyleClamp Screw
Torsional Stiffness24780.00 in-lb/rad
TypeMini Disc Coupling
Weight0.01 lb
Weight (Complete Coupli.0.125 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514477191139.71In StockLovejoy0.01139.7 @ 1
thumbzoomheavydutydepot.com68514477191151.41In StockLovejoy151.4 @ 1
