Lovejoy 68514477203

B004QWZHMO

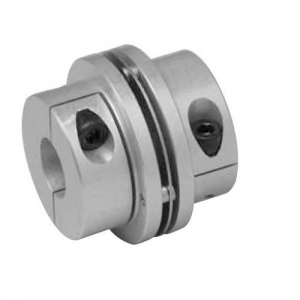

Lovejoy 77203 Size MDSD-63C Mini Disc Clamp Style Coupling, Single Disc, Complete Coupling, 0.5" Bore A, 0.5" Bore B, 2.48" OD, 1.969" Length, 2400 rpm Max Rotational Speed, 89 in-lbs Nominal Torque

Lovejoy 77203 Size MDSD-63C Mini Disc Clamp Style Coupling, Single Disc, Complete Coupling, 0.5" Bore A, 0.5" Bore B, 2.48" OD, 1.969" Length, 2400 rpm Max Rotational Speed, 89 in-lbs Nominal Torquezoom

Attributes

Key Value
Axial Misalignment? 0.010 in
Bore A0.375 in
Bore B0.750 in
Clamp Screw SizeM5
Coupling SizeADB7
Cubic inches5.90850 in
FinishAnodized Aluminum
Keyway SizeNo Keyway
Length thru Bore0.709 in 18.00 mm
MaterialAluminum
Max. Angular Misalignme.7.00 ?
Max. Bore (Dimensions I.0.748 in 19.00 mm
Max. Operating Temperat.200.00 ?F
Max. Speed10000 rpm
Min. Bore (Dimensions I.0.394 in 10.00 mm
Moment of Inertia0.1180 lb in
Nominal Torque88.00 in lb
Outside Diameter1.500 in 38.10 mm
Overall Length2.626 in 66.70 mm
Parallel Misalignment0.024 in
StyleClamp Screw
Torsional Stiffness20514.00 in lb/rad
TypeDouble Beam Coupling
Weight0.36 oz
Weight (Complete Coupli.6.20 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514477203202.71In StockLovejoy0.0225202.7 @ 1
thumbzoomheavydutydepot.com68514477203214.41In StockLovejoy214.4 @ 1
