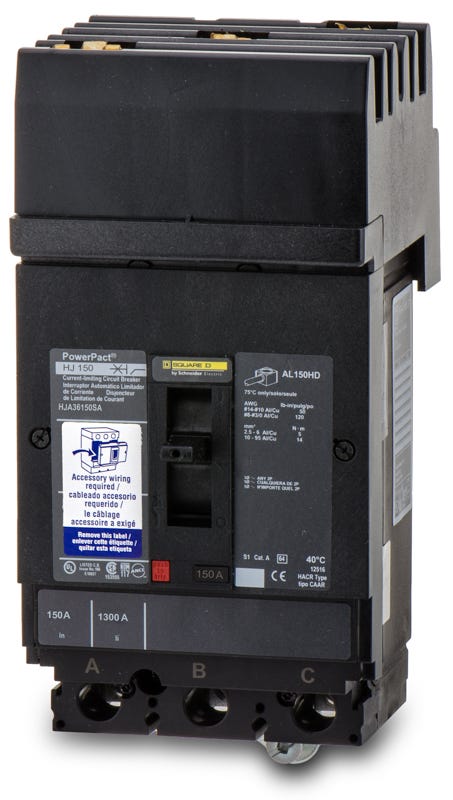

Square D HJA36150SA

B00WROLWZO

Square D - Hja36150Sa

Square D - Hja36150Sazoom

Attributes

Key Value
[Ics] Rated Service Bre.100 kA 220/240 V AC 50/.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating600VAC
Accessory / Separate Pa.shunt trip 110...130 V .
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage Rating150
Amps150
ApplicationHACR rated Applications.
Awg GaugeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity100 kA 240 V AC 50/60 H.
Breaking Capacity CodeJ
California Proposition .DINP, which is known to.
Catalog NumberHJA36150SA
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI2206027EN
ColorBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States
Depth86 mm
Device Applicationdistribution
Electrical ConnectionI-Line connection, line.
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant
FeaturesMercury Free; PVC Free
FrameJ
Frame SizeH
Gtin785901699323
Height163 mm, 6.42
High Amp Trip Setting1700 A
Interrupt Rating100 kA at 220/240V AC, .
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemMolded Case Circuit Bre.
Item TypeCIRCUIT BREAKER,SHUNT T.
Length4.8 IN
Line Rated Current150-150 A
Local Signallingswitched off (OFF) 1 tr.
Made in USAYes
Magnetic Hold Current900 A
Magnetic Tripping Curre.1700-1700 A
ManufacturerSchneider Electric
Max. AIR Rating100 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height4.5 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
MpnHJA36150SA
Net Weight2.2 kg
Network Frequency50/60 Hz
Number of Poles3
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase3
Phase ConnectionABC
Poles3
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.3t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHJA
Special FeaturesI-LINE
StandardUL LISTED-IEC-CCC-CE-CSA
StandardsUL || CSA || NEMA || NO.
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range150 A,1700 A,900 A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
Upc785901699323
UPC785901699323
Utilisation Categorycategory A
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width104 mm, 4.09
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00WROLWZO1399.251In Stock1SQUARE D1399.25 @ 1
simplybreakers.comHJA36150SA1648.991In StockSchneider Electric1648.99 @ 1
thumbzoomsuperbreakers.comHJA36150SA2588.51In StockSquare D2588.5 @ 1
thumbzoommayerelectric.comSQDHJA36150SA3635.121In StockSQUARE D4.843635.12 @ 1
thumbzoomRadwellHJA36150SA3800.01In StockSCHNEIDER ELECTRIC SQUARE D3800.0 @ 1
Newark71K48703832.741In StockSQUARE D BY SCHNEIDER ELECTRIC3832.74 @ 1
thumbzoomZoroG08548504006.991In Stock20Square D6.04006.99 @ 1
thumbzoomcrescentelectric.com6983296445.691In StockSquare D by Schneider Electric6445.69 @ 1
thumbzoomsustainablesupply.comC30466676829.111In StockSquare D6.06829.11 @ 1
