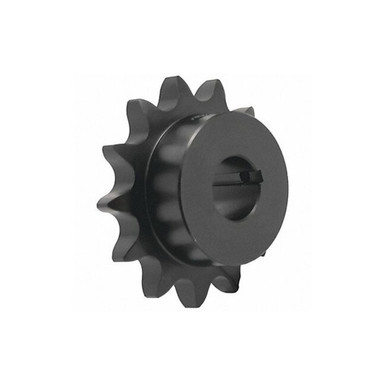

Sprocket, 7.520in. OD, 1-3/16in. BD, #36

mpn50BS36 X 1 3/16
brandname: Tritan
manufacturername: Tritan

Sprocket, 7.520in. OD, 1-3/16in. BD, #36

Sprocket, 7.520in. OD, 1-3/16in. BD, #36

zoom

PackageQuantity: 1
Manufacturer: TRITAN
Label: TRITAN

Attributes

Key	Value
ANSI Sprocket Number	50
Bore Dia. (In.)	1-3/16
Bore Dia. - Sprockets	1 3/16 in
Bore Diameter	1 3/16 in
Bore Type	Fixed
Brand	Tritan
Chain Number	50
Color	Black Oxide
Country of Origin (subj.	China
Current Stock	3
Finish	Black Oxide
For Chain Number	50
For Chain Pitch	5/8 in
For Number of Strands	Single
For Use With	Roller Chain
Hub Dia.	3.25 in
Hub Dia. (In.)	3-1/4
Hub Diameter	3 1/4 in
Hub Projection	1 in
Hub Type	One Side
Includes	Standard Keyway and (2).
Industry Chain Pitch	5/8 in
Industry Chain Size	50
International Shipping	No
Item	Sprocket
Item - Roller Chain Spr.	Roller Chain Sprocket
Keyseat Size (In.)	1/4 x 1/8
Keyway	Yes
Keyway Depth	1/8 in
Keyway Size	1/4 in x 1/8 in
Keyway Width	1/4 in
Lead Time	Expected to ship in 1-2.
Length through Bore	1.250", 1 1/4 in
Length through Bore (In.	1-1/4
Material	Steel
Material - Sprockets	Steel
Maximum Bore Diameter	1 3/16 in
Mpn	50BS36 X 1 3/16
Number of Chain Rows	Single
Number of Set Screws	2
Number of Teeth	36
Number of Teeth - Sproc.	36
Outside Dia.	7.52 in
Outside Dia. (In.)	7.520
Outside Diameter	8 in
Pitch Dia.	0.625 in
Pitch Dia. (In.)	0.625
Pitch Diameter	7.171 in
Set Screw Dia. (In.)	5/16
Set Screw Hole Dia.	0.313 in
Set Screw Location	Setscrews are Placed Ov.
Set Screw Size	5/16 in
Setscrew Location	One Setscrew Over The K.
SKU	ZO-G0028701
Sprocket Bore Type	Fixed Bore
Sprocket Hub Type	Type B
Standards	ANSI B29.1, BIS
SubCategory	Power Transmission
Teeth Heat Treatment	Not Hardened
Tooth Width	0.343 in
Type	Finished Bore
UPC	888569101129
Width Across Tooth Sets	Not Applicable
