Burndy YA31A5

B00CBNZBUI

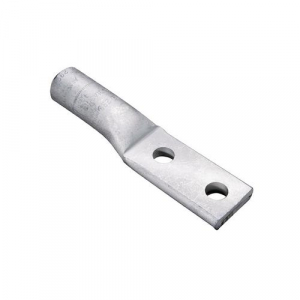

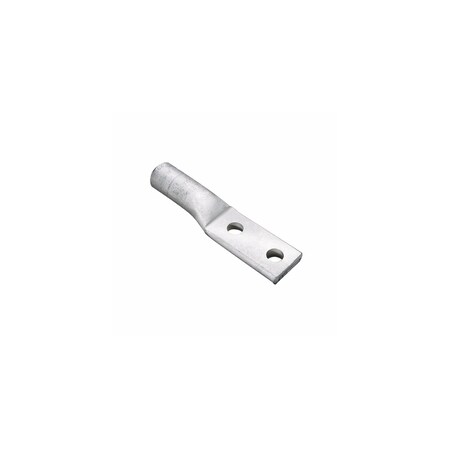

Burndy YA31A5 Hylug Uninsulated Compression Terminal, 2 Holes, 350 kcmil Conductor, 1.52" Width, 4.85" Length (Pack of 10)

Burndy YA31A5 Hylug Uninsulated Compression Terminal, 2 Holes, 350 kcmil Conductor, 1.52" Width, 4.85" Length (Pack of 10)zoom

Attributes

Key Value
Color CodeBrown
Color FamilyBrown
Conductor - AL Str Size350 kcmil
Conductor - AL Str Size.350 kcmil
Conductor - Copper Str .350 kcmil
Conductor - Copper Str .350 kcmil
Connector TypeTerminal
Country of OriginUS - United States
Country of Origin (subj.Unknown
Die ColorBrown
Die Index299
Dimension - B Length fr.1-7/8 in
Dimension - B Length in.1.85 in
Dimension - Bolt Hole S.0.39 in
Dimension - Bolt Size f.3/8
Dimension - D inch1.89 in
Dimension - Hole Size i.0.44 in
Dimension - Hole Size mm11 mm
Dimension - L Length Ov.123 mm
Dimension - Length Over.4.85 in
Dimension - N inch0.44 in
Dimension - Outside Dia.1.11 in
Dimension - Pad Width i.1.52 in
Dimension - Strip Lengt.2 1/8
Dimension - Stud Size i.3/8
Dimension - Thread Size3/8
Dimension - Z inch0.45 in
ECCNEAR99
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
FinishElectro Tin-Plated
Lug Wire Size350 kcmil
MaterialAluminum
Physical Attribute - Nu.2
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating TypeTin - Electro Plated
Rating - KVA35 kV
Rating - Minimum Voltage600
Stud Hole Spacing1 in.
Stud Size3/8 in.
Temperature Rating194
Trade NameHYLUG
UNSPSC39121432
Use WithAluminum Conductors; Co.
Voltage - Maximum35000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG069373536.64110Burndy36.64 @ 10
thumbzoomusmegastore.comYA31A552.04110Burndy52.04 @ 10
thumbzoomgordonelectricsupply.comYA31A558.41110BURNDY58.41 @ 10
Graybar9213374159.864110Burndy59.864 @ 10
