- mpnC20632
- brandname: Cle-Line
- manufacturername: Cle-Line

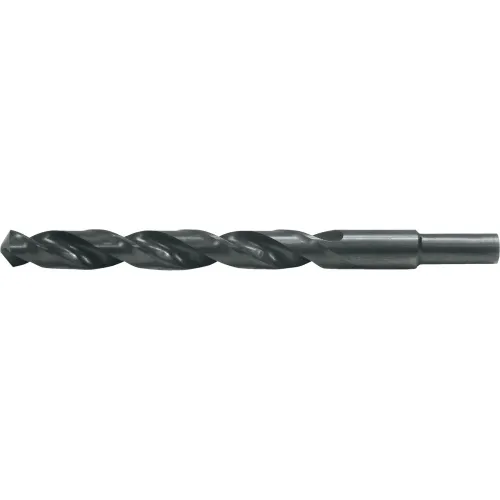

Cle-Line C20632 Heavy Duty Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 135-Degree Split Point, 13/32" Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C20632
- Model: C20632
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Stainless Steel, Tool S. |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.4062 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4062" |
| Diameter (Fraction) | 13/32" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 13/32 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Size - Decimal In. | 0.4062 in |
| Drill Size - Fraction | 13/32 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3.8750", 3 7/8 in, 3-7/. |
| Flute Length (Metric) | 98.42mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| Item | Reduced Shank Drill Bit |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1 5/8 in |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Overall Length | 5 1/4 in, 5-1/4 in, 5.2. |
| Overall Length (Metric) | 133.35mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1809 |
| Shank Configuration | Reduced |
| Shank Dia. | 3/8 in |
| Shank End Feature | Reduced |
| Shank End Feature Length | 1.0000" |
| Shank Length | 1.3750", 1 in |
| Shank Length (Metric) | 34.92mm |
| Shank Size | 0.3750", 3/8 in Dia x 1. |
| Shank Size (Metric) | 9.52mm |
| Shank Type | Reduced |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1809 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 13/32" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543871 | 5.3 | 6 | 6 | | Cle-Line | | 5.3 @ 6 |
 | MRO Supply | 6123917 | 6.03 | 9 | 6 | | Cle-Line | | 6.03 @ 9 |
 | usmegastore.com | C20632 | 6.1 | 1 | 6 | | Cle-Line | | 6.1 @ 6 |
 | heavydutydepot.com | C20632 | 6.1 | 17 | 6 | | Cle-Line | | 6.1 @ 17 |
 | Zoro | G4941365 | 7.72 | 6 | 6 | 12 | Cle-Line | 0.14 | 7.72 @ 6 |
| AmazonSC | B00J9M62AM | 38.48 | 1 | 6 | | Cle-line | | 38.48 @ 6 |
