Cleveland Twist Drill C42564

mpnC42564
brandname: CLEVELAND
manufacturername: CLEVELAND

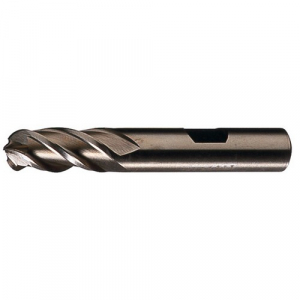

Cleveland C42564 3/4 X 3/4 Ctd Pm Co Sem Ball 4fl

Cleveland C42564 3/4 X 3/4 Ctd Pm Co Sem Ball 4fl

zoom

Brand: Cleveland Twist Drill
PartNumber: C42564
Manufacturer: Cleveland
Label: Cleveland

Attributes

Key	Value
Cast Iron (K) Compatibi.	Yes
Center Cutting	Yes
Construction	High Performance Finish.
Corner Radius	0.000"
Cutter Diameter	3/4 in
Cutting Direction	Right Hand
Decimal Equivalent	0.7500" / 19.05mm
Diameter Fractional	3/4"
Dimension Type	Fractional Inch
Double Ended	No
End Mill Application	Finishing
End Mill Cutting Type	Center Cutting
End Mill Material	Powdered Metal
End Style	Ball Nose
Finish	Bright, Bright (Uncoate.
Flute Type	Spiral
Grade	High Performance
Hand of Spiral Cut	RHS / RHC
Hardened (H) Compatibil.	Yes
Helix Angle	37 deg, 37 Degrees
Item	Ball End Mill
Length of Cut	1.6250" / 41.27mm, 1-5/.
List Style	PM-4B
Material	HSS-E (PM), PM HSS-E, P.
Milling Dia.	3/4 in
Milling Diameter	3/4"
Neck Length	Not Applicable
Non Ferrous (N) Compati.	No
Number of Flutes	4
Overall Length	3.8 in, 3.8750" / 98.42.
Series	PM-4B
Shank	Straight with Weldon Fl.
Shank Dia.	3/4 in
Shank Diameter	0.7500" / 19.05mm, 3/4 .
Shank Type	Straight/Weldon Flat, W.
Single End/Double End	Single End
Stainless (M) Compatibi.	Yes
Steel (P) Compatibility	Yes
Style	PM-4B
Super Alloy (S) Compati.	Yes
Surface Condition	Bright
Tool Size	3/4" x 3/4" x 1-5/8" x .
Type	Ball Nose Center Cuttin.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6117023	79.47	1	In Stock		Cleveland		79.47 @ 1
	usmegastore.com	C42564	86.64	1	In Stock		Cleveland		86.64 @ 1
	Zoro	G2972413	95.15	1	1		Cleveland	0.4	95.15 @ 1
