- mpn4M183
- brandname: Dayton
- manufacturername: Dayton

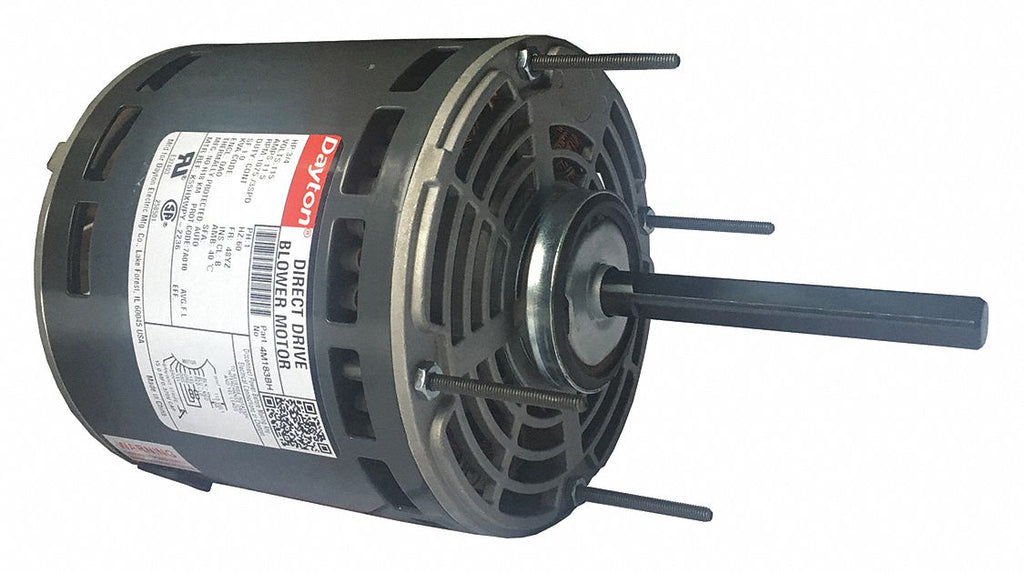

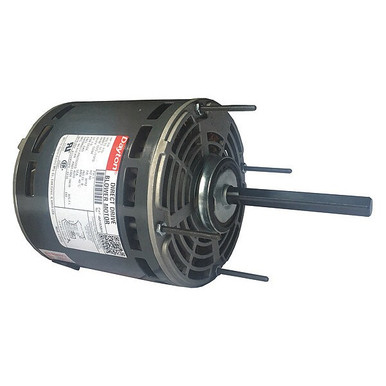

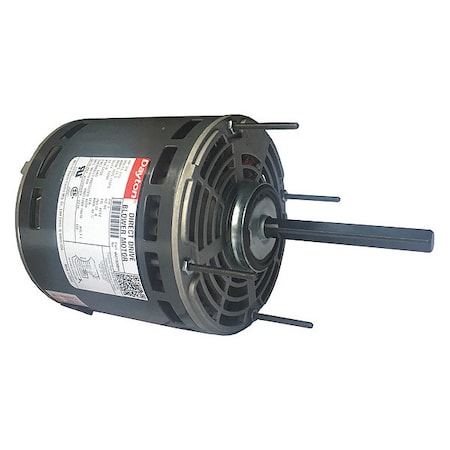

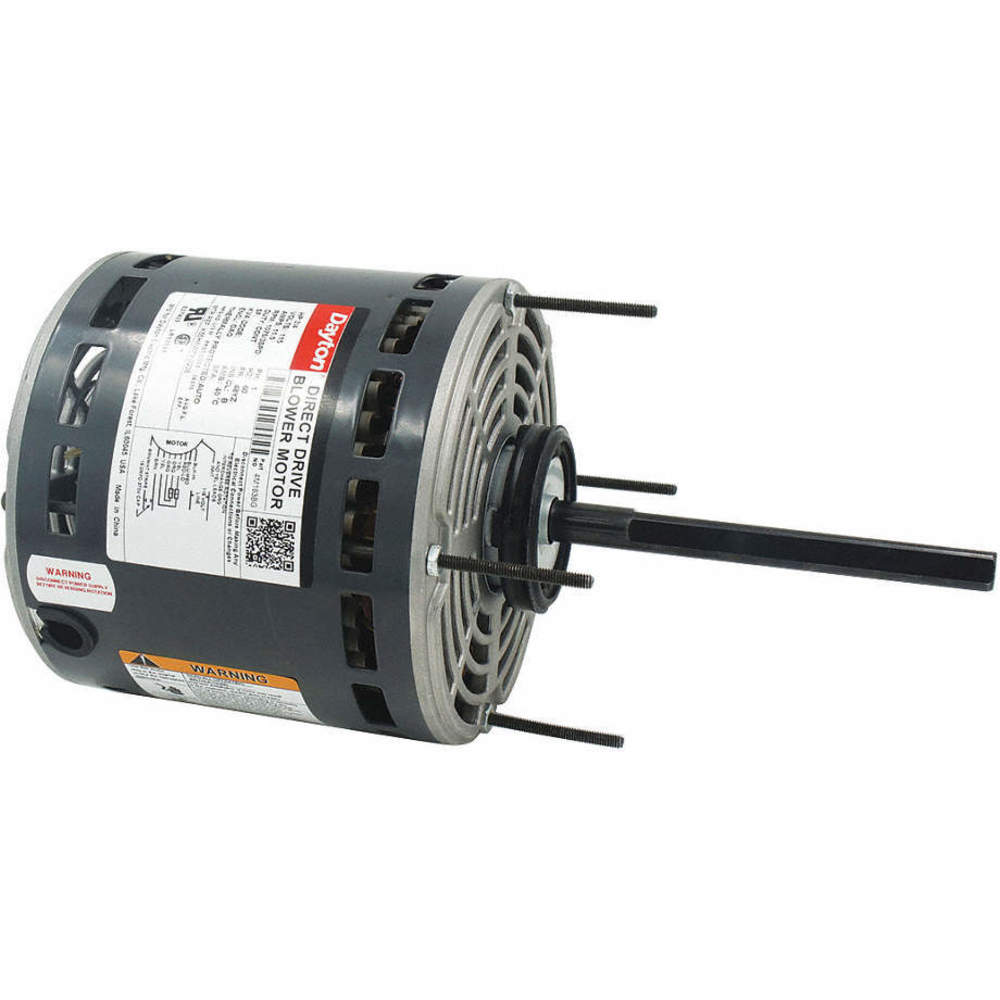

Dayton 3/4 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1075 Nameplate RPM, 115 Voltage
- Brand: CAI - DAYTON
- PartNumber: 4M183
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 11.5 |
| Bearings | Sleeve |
| Body Dia. | 5 5/8 in, 5-5/8" |
| Bolt Circle Dia. | 5-1/8", 5 1/8 in |
| Brand | Dayton |
| Capacitor | 15MFD @ 370VAC Run Capa. |
| Capacitor Required | WWG2MDV9 |
| Color | Black |
| Cross Reference | 4KA38, 3LU87 |
| Current Stock | 97 |
| Duty Cycle | Continuous |
| Enclosure Type | OAO (Open Air Over) |
| Frame | 48YZ |
| Full Load Amps | 11.5, 11.6 |
| HP | 3/4 |
| Hz | 60 |
| Includes | Kit for 2.5 in Hub Ring. |
| Ins. Class | B |
| Insulation Class | B |
| International Shipping | No |
| Item | Direct Drive Blower Mot. |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 6 7/16 in |
| Max. Ambient Temp. | 40 Degrees C, 40 Degre. |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Permanent Split Capacit. |
| Motor Diameter | 5-5/8" |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Ring/Stud |
| Motor Service Factor | 1, 1.00 |
| Motor Shaft Design | Double-Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 6-7/16" |
| Motor Sub Application | Direct Drive Fan/Blower. |
| Motor Thermal Protection | Auto |
| Mounting | Ring/Stud |
| Mounting Stud Pattern | 3 5/8 in x 3 5/8 in |
| Mpn | 4M183 |
| Nameplate RPM | 1,075 |
| No. of Speeds | 3 |
| Number of Shafts | 3 |
| Number of Speeds | 3 |
| Overall Length | 10 7/16 in, 10-7/16" |
| Phase | 1 |
| Product Type | PSC (Permanent Split Ca. |
| Resilient Ring Dia. | 2 1/4 in |
| Ring to Ring Center | 6 in |
| Rotation | Reversible |
| RPM | 1075 |
| RPM Range | 1,001-1,100 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 1/2 in |
| Shaft Diameter | 1/2" Double Flatted |
| Shaft Length | 4", 4 in |
| Ship Weight | 18 lbs. |
| SKU | ZO-G3414214 |
| Standards | UL Recognition (E37403). |
| Stud Size | 8-32 NC 2A Thread x 1 5. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | Automatic |
| UPC | 190735330128 |
| Voltage | 115, 115V AC |
| Voltage Compatibility | 115/208-230V AC, 115/23. |
| Volts | 115 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B0042G5B34 | 138.1 | 1 | In Stock | 2 | DAYTON | | 138.1 @ 1 |
 | Zoro | G3414214 | 179.99 | 1 | 200 | | Dayton | 17.0 | 179.99 @ 1 |
| grainger.ca | GGE4M183 | 184.1006919 | 1 | In Stock | | DAYTON | 18.0 | 184.1006919 @ 1 |
 | simsupply.com | ZO-G3414214 | 213.1 | 1 | 97 | | Dayton | | 213.1 @ 1 |
 | sustainablesupply.com | C1561248 | 239.99 | 1 | In Stock | | Dayton | 17.0 | 239.99 @ 1 |
| emotorpro.com | 4M183 | 252.79 | 1 | In Stock | | Dayton | 18.0 | 252.79 @ 1 |
 | Raptor Supplies | AD8TFG | 295.963668 | 1 | In Stock | | DAYTON | | 295.963668 @ 1 |
