Leeson 113903.00

B00EP2TA96

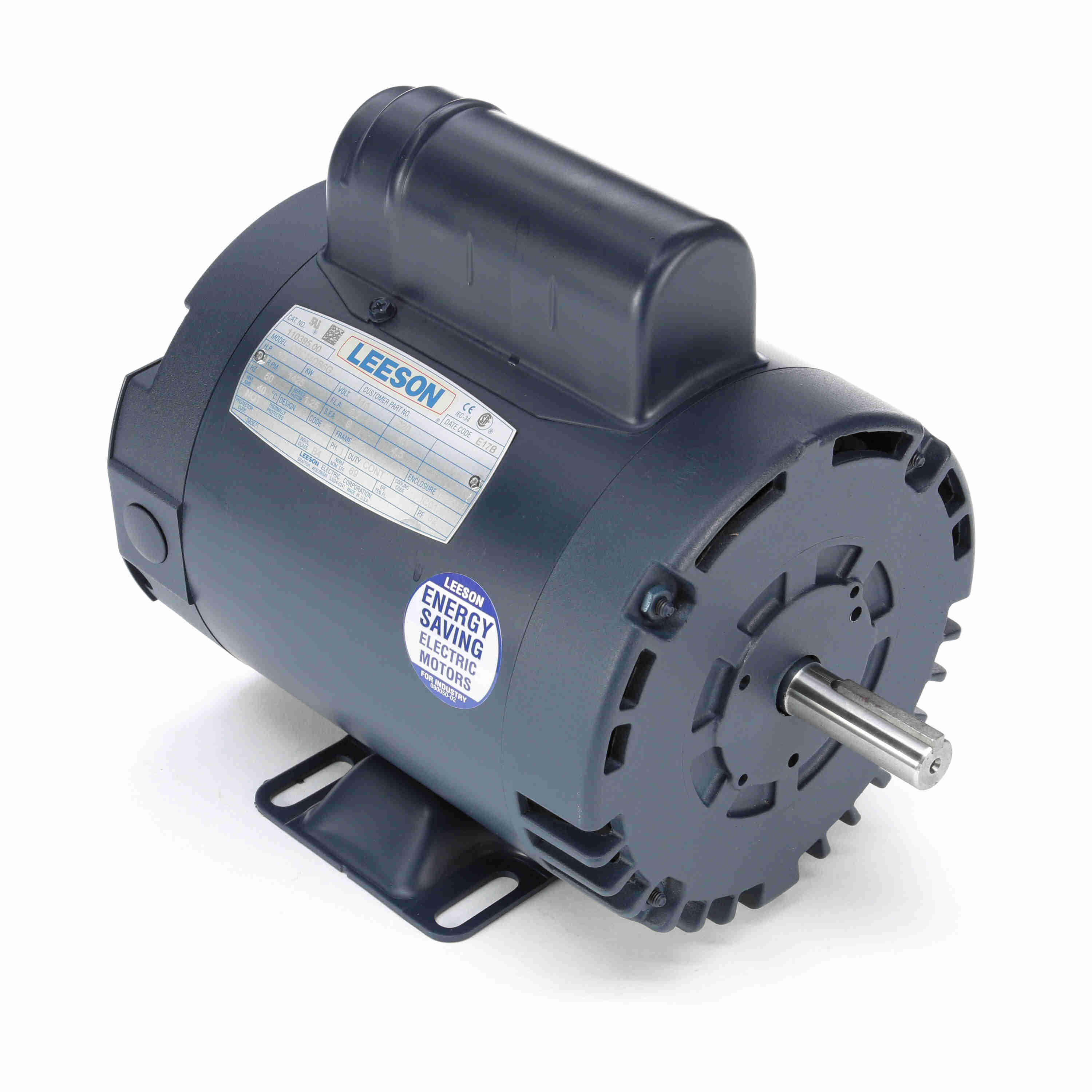

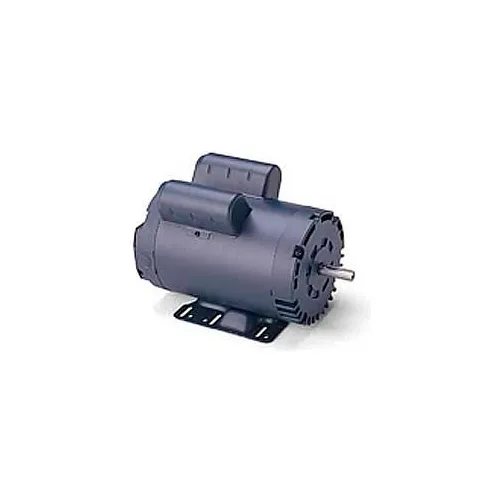

Leeson 113903.00 Rigid Base Special Voltage Motor, 1 Phase, 56 Frame, Rigid Mounting, 1HP, 3000 RPM, 110/220V Voltage, 50Hz Fequency

Leeson 113903.00 Rigid Base Special Voltage Motor, 1 Phase, 56 Frame, Rigid Mounting, 1HP, 3000 RPM, 110/220V Voltage, 50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating13.2/6.6 A
Amps13.2/6.6
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupC6C28DB26
CompositionSteel
ConstructionRolled Steel
Description:1HP..75kW.2850RPM.56.IP.
Dimensions10.84 in L x 6.5 in W
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency66.0%, 66
EnclosureODP, TEFC, Drip Proof
Enclosure MaterialRolled Steel
Enclosure TypeDP (Dripproof), DP
Estimated Weight31.00
Family SeriesLeeson Motors, Special .
FL Amps13.2/6.6
FL Efficiency66
Frame56
Frame MaterialRolled Steel
Frequency50
Frequency Rating50 Hz
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz50
Insulation ClassB, Class B
Item ConditionFACTORY NEW
Item Number113903.00
KW0.75
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number113903.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:113903.00
Model NumberC6C28DB26
Motor Shell Length6.00"
MountingFoot Mount, Rigid Base
mountingRigid Base
Mounting TypeFoot Mount, Rigid, Rigi.
NEMA Frame56
Net Weight31 lbs
Nominal Voltage120 VAC, 240 VAC
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length10.84", 10.84 "
Part Number113903.00
Phase1, 1 ph
Product SeriesSpecial Voltage
Product TypeGeneral Purpose, Capaci.
RotationSelective CCW, Reversib.
RPM2850, 3000, 3,000 RPM
Service Factor1.25
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight34 lbs.
Special FeaturesCapacitor Start Motors
Speed (RPM)2850
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720012574
Voltage110/220, 110-120V, 220V
Volts110/220

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com113903308.01In StockLEESON308.0 @ 1
AmazonTPB0773QXX94329.41In Stock5Leeson Electric329.4 @ 1
thumbzoomMRO Supply2525726433.891In StockLeeson433.89 @ 1
thumbzoomDealers Electric113903.00541.821In StockLeeson34.0541.82 @ 1
us.rs-online.com73397321584.031In StockLeeson584.03 @ 1
thumbzoommotorsandcontrol.comLE-113903.00595.1417Leeson Electric31.0595.14 @ 1
thumbzoomGalco113903.00-LEES599.821In StockLeeson31.0599.82 @ 1
thumbzoomemotorpro.com113903.00602.781In StockLeeson34.0602.78 @ 1
kscdirect.comLEE 113903.00621.971In StockLEESON ELECTRIC CORPORATION621.97 @ 1
thumbzoomcbtcompany.com113903.00659.311In StockLeeson Electric659.31 @ 1
thumbzoomWalker Industrial113903-00674.51In Stock17Leeson674.5 @ 1
thumbzoomGlobal IndustrialWBB588543767.02In StockLeeson767.0 @ 2
thumbzoompumpproducts.com113903.00807.341In StockLeeson807.34 @ 1
thumbzoomRaptor SuppliesAD7WED849.1861In StockLEESON849.186 @ 1
