V150LA20BP-LITTELFUSE

B018CPCLG0

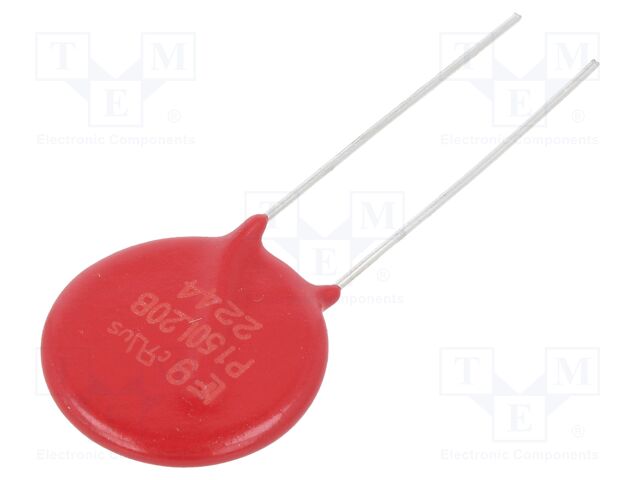

Littelfuse V150LA20BP Varistor, Circuit Protection; 150VAC; 360V; 6500A; Metal Oxide; 1600pF; Radial

Littelfuse V150LA20BP Varistor, Circuit Protection; 150VAC; 360V; 6500A; Metal Oxide; 1600pF; Radialzoom

Attributes

Key Value
AC Voltage150 V
ApprovalsUL
Capacitance1600 pF
Clamping Voltage360 V
DC Voltage200 V
Energy (Joules)80 J
Energy Rating80 Joules
Family SeriesLittelfuse Metal Oxide .
Gross Weight0 lbs
Item NumberV150LA20BPX2855
ManufacturerLittelfuse
Manufacturer Part NumberV150LA20BPX2855
Max Applied Voltage DC200 VDC
Max Applied Voltage RMS150 Vrms
Max Clamping Volts395 V
Mounting StyleThrough Hole
Net Weight0 lbs
Number of Circuits1
Operating Voltage200 V
Package TypeDisc 20mm
Peak Current6500 A, 6,500 A
Product SeriesLA
RoHSYes
SeriesLA Series
TechnologyMetal Oxide
TypeMOV
Varistor Voltage243 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
VericalV150LA20BPX28550.3520255Littelfuse0.35 @ 50
Digi-KeyV150LA20BPX2855-ND0.393150050Littelfuse Inc.0.393 @ 1500
Newark90T97970.451150050LITTELFUSE0.451 @ 1000
thumbzoomGalcoV150LA20BPX2855-LF0.49150050Littelfuse0.49 @ 1500
thumbzoomTMEV150LA20BP0.585250LITTELFUSE0.585 @ 50
Future Electronics47786350.62416189Littelfuse0.624 @ 50
RS Delivers170-99570.6396150Littelfuse0.6396 @ 50
HotendaH6140350.73811867Littelfuse0.738 @ 50
us.rs-online.com701847010.861834Littelfuse0.86 @ 50
AmazonTPB06ZZXKGZN23.761501LITTELFUSE23.76 @ 50
