Lovejoy 68514477189

B004QWZHTC

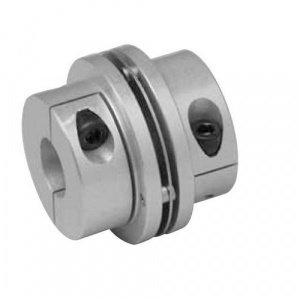

Lovejoy 77189 Size MDSD-40C Mini Disc Clamp Style Coupling, Single Disc, Complete Coupling, 0.25" Bore A, 0.25" Bore B, 1.575" OD, 1.496" Length, 3800 rpm Max Rotational Speed, 35 in-lbs Nominal Torque

Lovejoy 77189 Size MDSD-40C Mini Disc Clamp Style Coupling, Single Disc, Complete Coupling, 0.25" Bore A, 0.25" Bore B, 1.575" OD, 1.496" Length, 3800 rpm Max Rotational Speed, 35 in-lbs Nominal Torquezoom

Attributes

Key Value
Angular Misalignment1 ?
ApplicationMotion Control
Axial Misalignment? 0.20 in
Bore A0.250 in
Bore B0.250 in
Bore TypeFinished Bore
Clamp Screw SizeM4
Coupling SizeMDSD40C
Cubic inches3.71102 in3
Description:MDSD40C-CP-1/4X1/4;
Dimension HD1.102 in (28.00 mm)
Disc MaterialStainless Steel
Hub MaterialAluminum
Keyway SizeNo Keyway
Length thru Bore0.650 in (16.50 mm)
ManufacturerLOVEJOY INC
Max. Bore (Dimensions I.0.551 in (14.00 mm)
Max. Operating Temperat.300.00 ?F
MFG Part #:68514477189
Min. Bore (Dimensions I.0.236 in (6 mm)
Moment of Inertia0.0410 lb-in2
Nominal Torque35.00 in-lb
Outside Diameter1.575 in (40.00 mm)
Overall Length1.496 in (38.00 mm)
StyleClamp Screw
Supplier:LOVEJOY INC
Torsional Stiffness24780.00 in-lb/rad
TypeMini Disc Coupling
UPC:685144771896
Weight0.01 lb
Weight (Complete Coupli.0.125 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomheavydutydepot.com68514477189151.41In StockLovejoy151.4 @ 1
thumbzoomusmegastore.com68514477189158.11In StockLovejoy0.01158.1 @ 1
cbtcompany.com68514477189185.61In StockLovejoy185.6 @ 1
kscdirect.comLOV 68514477189194.961In StockLOVEJOY INC194.96 @ 1
Airline HydraulicsLOVEJOY 68514477189283.91In StockLOVEJOY283.9 @ 1
