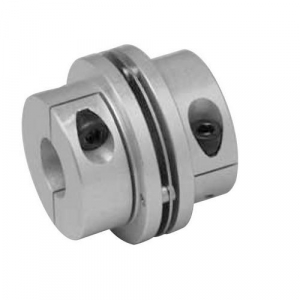

Lovejoy 77198 Size MDSD-50C Mini Disc Clamp Style Coupling, Single Disc, Complete Coupling, 0.5" Bore A, 0.625" Bore B, 1.969" OD, 1.732" Length, 3100 rpm Max Rotational Speed, 66 in-lbs Nominal Torque

Lovejoy 77198 Size MDSD-50C Mini Disc Clamp Style Coupling, Single Disc, Complete Coupling, 0.5" Bore A, 0.625" Bore B, 1.969" OD, 1.732" Length, 3100 rpm Max Rotational Speed, 66 in-lbs Nominal Torquezoom

Attributes

Key Value
Angular Misalignment1 ?
ApplicationMotion Control
Axial Misalignment? 0.20 in
Bore A0.500 in
Bore B0.625 in
Bore TypeFinished Bore
Clamp Screw SizeM5
Coupling SizeMDSD50C
Cubic inches6.71490 in3
Dimension HD1.535 in (39.00 mm)
Disc MaterialStainless Steel
Hub MaterialAluminum
Keyway SizeNo Keyway
Length thru Bore0.764 in (19.40 mm)
Max. Bore (Dimensions I.0.787 in (20.00 mm)
Max. Operating Temperat.300.00 ?F
Min. Bore (Dimensions I.0.394 in (10.00 mm)
Moment of Inertia0.1264 lb-in2
Nominal Torque66.00 in?lb
Outside Diameter1.969 in (50.00 mm)
Overall Length1.732 in (44.00 mm)
StyleClamp Screw
Torsional Stiffness32745.00 in-lb/rad
TypeMini Disc Coupling
Weight0.26 oz
Weight (Complete Coupli.4.23 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514477198151.01In StockLovejoy0.01625151.0 @ 1
thumbzoomheavydutydepot.com68514477198162.71In StockLovejoy162.7 @ 1
