brandname: Marathon Motors
manufacturername: Marathon Motors

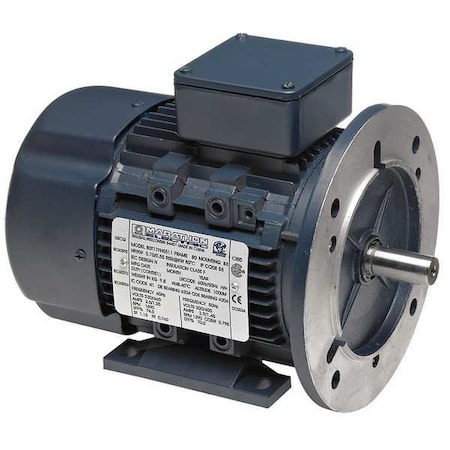

Marathon Motors 3/4 HP Metric Motor,3-Phase,3400 Nameplate RPM,230/460 Voltage,Frame 71

Marathon Motors 3/4 HP Metric Motor,3-Phase,3400 Nameplate RPM,230/460 Voltage,Frame 71

zoom

PartNumber: 71T34FH5510
PackageQuantity: 1
Manufacturer: CAI - MARATHON MOTORS

Attributes

Key	Value
Country of Origin (subj.	China
Duty	Continuous
Frame	71
Frame Material	Aluminum
Full Load Amps	2.4/1.2
HP	3/4
Hz	60/50
Ins. Class	F
Item	Metric Motor
kW	0.56
Max. Ambient Temp.	40 Degrees C
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Cast Aluminum
Motor Mounting Type	Face/Base
Motor Service Factor	1.15
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Nameplate RPM	3400
No. of Speeds	1
Nominal Efficiency	74.0%
Phase	3
RPM Range	3001-3600
Shaft Dia.	14mm
Shaft Length	30mm
Standards	UL (E49747), CSA (LR2.
Voltage	230/460
Voltage Compatibility	460, 230/460, 220-230/4.
