- mpn8SCHMPB
- brandname: TB WOOD'S
- manufacturername: TB WOOD'S

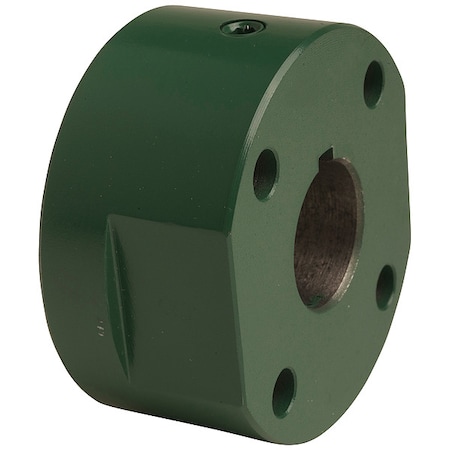

Sleeve Cpling Spacer Hub,FixedBore,3/4"
- Brand: TB Woods
- PartNumber: 8SCHMPB
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB WOOD'S
- Label: TB WOOD'S
Attributes
| Key | Value |
|---|
| Body Style | Type-SC Spacer Hub |
| Bore Dia. | 3/4 in |
| Bore Dia. (In.) | 3/4 |
| Bore size | 3/4 in |
| Bore size (in) | 3/4 |
| Bore tolerance | +.0005 to +.0015 |
| Bore Type - Couplings | Plain Bore |
| Bushing Required | None |
| Capscrew size | Qty 4 5/16 x 2 1/4 |
| Capscrew size (in) | Qty 4 5/16 x 2 1/4 |
| Capscrew torque require. | 7 |
| Capscrew torque requirm. | 18 |
| Component WR2 (lbs ft2) | 0.0354 |
| Component WR? | 0.0354 |
| Construction type | Finish bore |
| Country of Origin (subj. | Mexico |
| Coupling size | 8 |
| Dimension (in) (C) | 1 23/32 |
| Dimension (in) (H) | 3-1/4 |
| Dimension (in) (S) | 1/2 |
| Flange Type - Sleeve Co. | SC |
| Height (In.) | 1.719 in |
| Horsepower Rating at 10. | 52 |
| Hub Dia. (In.) | 1.719 in |
| Ideal For | Applications In Motors,. |
| Item | Sleeve Coupling Spacer . |
| Item - Sleeve Coupling . | Sleeve Coupling Spacer . |
| Keyseat (in) | No KS, Suitable for reb. |
| Keyseat size | No KS, Suitable for reb. |
| Keyseat Size (In.) | None, Plain Bore |
| Length through bore | 1.71875 |
| Length through Bore (In. | 1.72 in |
| Material of Construction | cast iron |
| Material type | High strength cast iron |
| Max angular gap misalig. | 0.094 (in) with EPDM/Ne. |
| Max angular misalignment | 1? with EPDM/neoprene s. |
| Max compatible bore size | 2.375 |
| Max parallel misalignme. | 8 |
| Max RPM | 4500 |
| Max speed | 4500 |
| Max. Angular Misalignme. | 0.25 Degrees For Hytre. |
| Max. RPM | 4,500 RPM |
| Min compatible bore size | 0.4375 |
| Outside Dia. | 1.719 in |
| Outside Dia. (In.) | 1.719 |
| Power rating at 100 RPM | 1.8 kW with EPDM or Neo. |
| Screw size | Setscrew |
| Screw type | Hub, spacer |
| Set screw distance | 0.5 |
| Setscrew length | 0.5 |
| Setscrew length (in) | 1/2 |
| Setscrew Location | One |
| Setscrew size, location | 3/8 16 UNC, over keyseat |
| Setscrew torque require. | 23 |
| Setscrew Torque Requirm. | 23 |
| SF hub diameter | 3.25 |
| Size - Sleeve Couplings | 8 |
| Torque | 1,475 in-lb with EPDM o. |
| Torque rate | 1,475 (in-lbs) with EPD. |
| Width (In.) | 1.72 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G8513784 | 55.83 | 1 | In Stock | | Tb Woods | 3.56 | 55.83 @ 1 |
 | MRO Supply | 339017 | 63.21 | 2 | In Stock | | TB Woods | | 63.21 @ 2 |
 | Purvis | 8SC-HX3/4 MPB | 86.22 | 1 | In Stock | | TB Woods | | 86.22 @ 1 |
| us.rs-online.com | 72513743 | 90.74 | 1 | In Stock | | TB Wood's (Altra) | | 90.74 @ 1 |
 | Raptor Supplies | AG3EJQ | 162.6302925 | 1 | In Stock | | TB WOOD'S | | 162.6302925 @ 1 |
