- mpnC23322
- brandname: Cle-Line
- manufacturername: Cle-Line

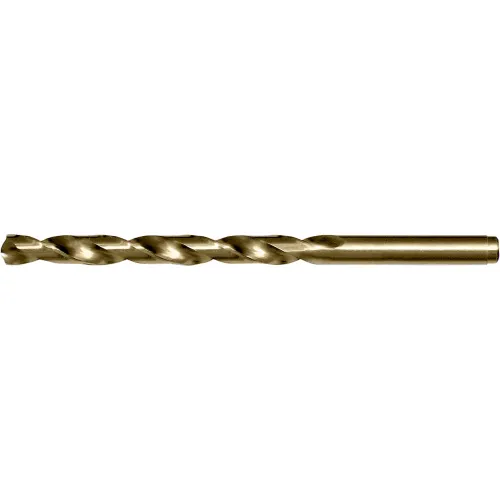

Cle-Line C23322 Cobalt Heavy Duty Jobber Length Drill, Cobalt, Gold Oxide Finish, Straight Shank, 135-Degree Split Point, Letter Size C Drill Diameter (Pack of 12)
- Brand: Cle-line
- PartNumber: C23322
- Model: C23322
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Application | For Alloy, Stainless St. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.2420 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2420" |
| Diameter (Wire/Let) | C |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Black/Gold |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | C |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in, . |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0000 in |
| Drill Size - Decimal In. | 0.242 in |
| Drill Size - Letter | C |
| Drill Size System | Letter |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 2-3/4 in, 2 3/4 in, 2.7. |
| Flute Length (Metric) | 69.85mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | HD Cobalt Jobber Drill,. |
| List Number | 1802 |
| Material | M42 HSS-Co 8%, HSS-CO, . |
| Material - Machining | Cobalt |
| Material Grade - Machin. | High Performance |
| Maximum Drilling Depth | 15/16 in, 2 1/16 in |
| Measurement System | Letter |
| Number of Flutes | 2 |
| Overall Length | 4.0000", 4 in |
| Overall Length (Metric) | 101.60mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split Point, Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 15/64 in |
| Shank Length | 1.2500", 1 1/4 in |
| Shank Length (Metric) | 31.75mm |
| Shank Size | 0.242 in Dia x 1.25 in . |
| Shank Size (Metric) | 6.15mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1802 |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | C |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C23322 | 3.46 | 1 | 12 | | Cle-Line | | 3.46 @ 12 |
 | heavydutydepot.com | C23322 | 3.46 | 29 | 12 | | Cle-Line | | 3.46 @ 29 |
 | Global Industrial | WBB2543523 | 3.8574 | 12 | 12 | | Cle-Line | | 3.8574 @ 12 |
 | usmegastore.com | C23322 | 3.99 | 1 | 12 | | Cle-Line | | 3.99 @ 12 |
 | MRO Supply | 6124756 | 4.68 | 8 | 12 | | Cle-Line | | 4.68 @ 12 |
 | Zoro | G6375788 | 4.69 | 12 | 131 | | Cle-Line | 6.0 | 4.69 @ 12 |
| Grainger | 53PR35 | 5.15 | 12 | 12 | 15 | CLE-LINE | | 5.15 @ 12 |
 | sustainablesupply.com | C2765446 | 6.49 | 1 | 12 | | Cle-Line | 0.04 | 6.49 @ 12 |
