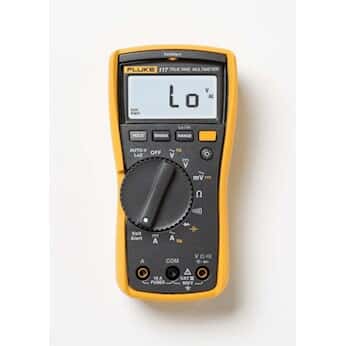

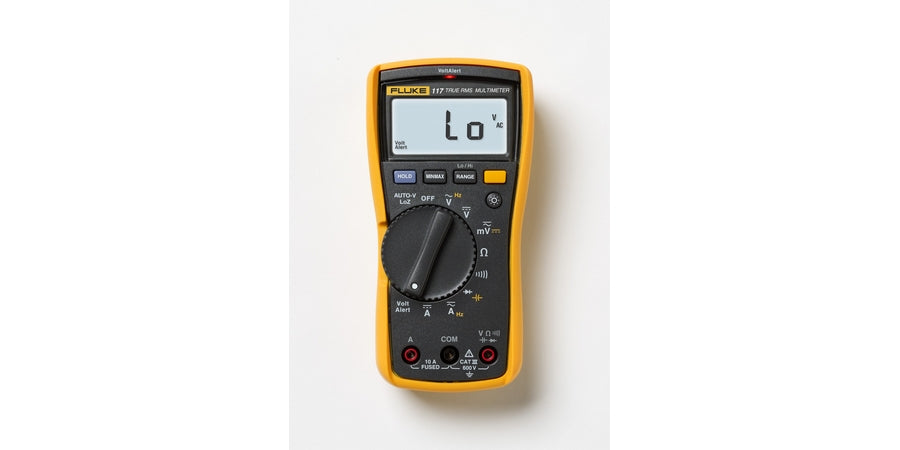

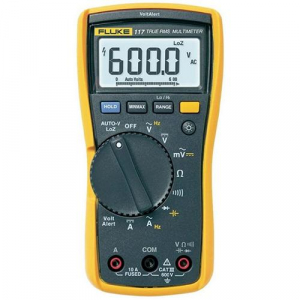

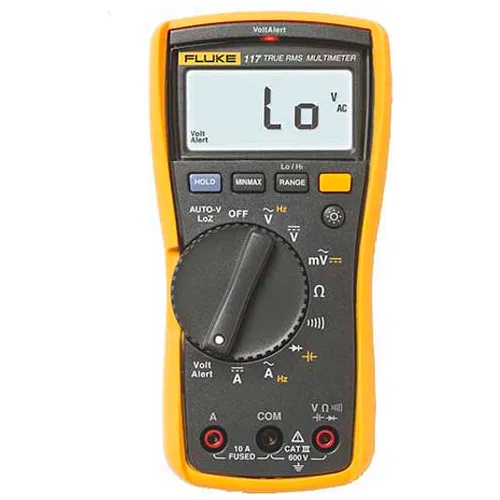

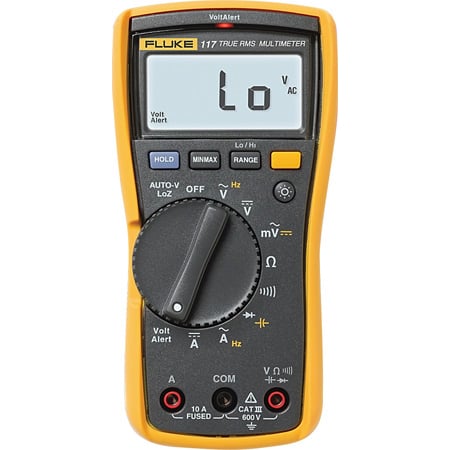

Fluke FLUKE 117

B000O3LUEI

Fluke 117 Digital Multimeter, Non-Contact AC Voltage Detection, Measures Resistance/Continuity/Frequency/Capacitance/Min Max Average, Automatic AC/DC Voltage Selection, Low Impedance Mode

Fluke 117 Digital Multimeter, Non-Contact AC Voltage Detection, Measures Resistance/Continuity/Frequency/Capacitance/Min Max Average, Automatic AC/DC Voltage Selection, Low Impedance Modezoom

Attributes

Key Value
AC Amps10 Amp
AC Millivolts1 True-RMS600 Milli-Volt
AC ResponseTRMS
AC Volts1 True-RMS6 - 600 Volt
AccuracyDC Milli-Volt: +/-0.5% .
Accuracy % (VAC)0.5 %
Accuracy % (VDC)0.5 %
Alternate Mfr Part Numb.2538815
ApplicationCompact true-rms meter .
Audible ContinuityYes
Auto RangingYes
AvailabilityIn Stock, ships within .
BacklightYes
Bar Graph33 Segments, Updates 32.
Basic DC Accuracy+/-0.50% of Reading +2 .
Battery9 Volt Alkaline, NEDA 1.
battery9 Volt Alkaline, NEDA 1.
Battery Life400 Hour
Battery life400 hours typical, with.
battery life400 h
Battery Size9V
Battery Type9 Volt Alkaline, 9 V Al.
BrandFluke
Brand NameFluke
Capacitance9,000 ?F, 1 nF - 9999 m.
Capacitance Measurement.?1.9% +2
Capacitance Measurement.1 ?F
Carton1
Catalog NumberFLUKE-117
CategoryTest and Measurement
Category DescriptionTest Equipment, Testers.
ClassificationTest Equipment, Testers.
CommentsCalibration to OEM spec.
ConfigurationHandheld
Continuity600 Ohm
Continuity W/ Diode TestYes
Country of OriginUnknown, SG - Singapore
Country Of Origin*** Unkown ***
Current Accuracy?1.0% +3
Current Measurement10 A
Current Rating10 A
Current Stock180
DC Amps10 Amp
Depth1.8 in
DescriptionElectricians True RMS M.
dimensions6.58 x 3.35 x 1.81
Dimensions3.31 Inch Width x 1.82 .
diode testYes
Diode Test2 Volt
Display33?4 Digits, 6000 Count.
displayDigital: 6,000 counts, .
Display Count6000
Display Digits3.75
Display TypeLCD, Bar Graph, LCD, Ba.
Duty CycleNo
ECCN3A992
EnclosureHard plastic
Energy Star FlagNo
extra long descriptionFLK FLUKE-117 ELECTRICI.
Family SeriesFluke Multimeters, 100 .
FeaturesBacklight, Hold, Min/Ma.
Frequency50 kHz
Frequency Rating5 Hz to 50 kHz, 5 Hz to.
FunctionVoltage, Current, Resis.
Function MeasuredVolt AC/DC;Current AC/D.
Functions, ExtraContinuity, Diode Test
Gross Weight1.565 lbs
GTIN00095969324205, #095969.
Height6.57 in
Hz (V or A input)250 - 99.99 Hz
IncludesBattery, Hanger, Manual.
Input Auto-V LoZYes
Instrument Counts6000
Instrument Frequency Co.0.01 Hz to 50 kHz
Instrument Safety RatingCAT III 600V
International ShippingNo
IP RatingNo
ItemDigital Multimeter
Item NameElectrician's Digital M.
Item NumberFLUKE-117
Item TypeDigital Multimeter
Length3.31 in
Long DescriptionTrue RMS Digital Multim.
Made in USAYes, No
ManufacturerFluke
Manufacturer NameFluke Corporation
Manufacturer Part NumberFLUKE-117, 2538815
Manufacturers Part Numb.FLUKE-117
Manufacturers Warranty .3 yr
MaterialHAWA
Max Current (AC)10 A
Max Current (DC)10 A
Max Resistance40 MOhm
Max Voltage (AC)600 VAC
Max Voltage (DC)600 VDC
Max. AC Amps10
Max. AC Volts600
Max. DC Amps10
Max. DC Volts600
Max. Ohms40 megohm
Measuring Rate4/sec
MfrFluke Electronics
Mfr. Model #FLUKE-117
Min./Max. MemoryYes
ModelFLUKE 117
MpnFLUKE-117
MPNFLUKE-117
Multimeter StyleCompact - Basic Features
Multimeter TypeDigital
Net Weight0.875 lbs
NIST CertifiedNo
Number of Displayed Dig.4
Overall Height6.6 in
Overall Width3.4 in
PackageBox, 5
Product Series100
Product StatusActive
Product TypeTrue RMS Digital Multim.
Promotion RestrictionNot eligible for promot.
Pulse WidthNo
RangingAuto
RatingsCAT III 600V
Resistance40 M, 40 Mega-Ohm, 0.1.
Resistance Measurement .?0.9 % +2
Resistance Range40 Megaohms
ResolutionDC Voltage: 0.1 Milli-V.
ResponseTrue RMS
RoHS FlagUnder review (by manufa.
Safety Category LevelCAT III
SeriesVoltAlert?, 11x, 117 Se.
Ship Weight (lbs.)0.5
Short DescriptionTrue RMS Digital Multim.
SKUCU-3147414A32
Special FeaturesLarge Display and White.
StandardCAT III 600V, CAT III 6.
standardCAT III 600 V
StandardsUL Listed, CSA Certifie.
StyleHandheld
SubCategoryTest Instruments
Surge Protective Voltage6 Kilo-Volt Peak Per IE.
Temperature Measurement.?1.5% +3
Temperature Rating-10 to 50 deg C, -10 ?C.
Temperature ReadingsNo
Thermal ImagerNo
Tool ApplicationCapacitance, Continuity.
True RMSYes
TypeDigital Multimeter, Non.
UnitEA
UNSPSC41113630, 41113630 - Mu.
UPC09596932420, 0959693242.
UPC Code095969324205
Voltage Accuracy?0.5% +2
Voltage Measurement600 V
Voltage Measurement Res.0.1 mV (DC Millivolts);.
Voltage Range600 V
Voltage Rating600 V, 600
Volts AC600
Volts DC600
Weight per each1.7196
Width1.82 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
MCM Electronics105-660179.951In StockFluke179.95 @ 1
internationaltool.comFLK-FLUKE117189.981In StockFluke189.98 @ 1
thumbzoomHNS ToolsFLUKE117193.491In StockFluke193.49 @ 1
Monarch Electric2212196.6341In StockFluke Corporation196.634 @ 1
thumbzoomIBS ElectronicsFLUKE-117199.951In StockFluke199.95 @ 1
Onlinecomponents.comFLUKE-117199.991In StockFLUKE199.99 @ 1
thumbzoomturtle.comTHS 52435369209.961In StockFluke209.96 @ 1
thumbzoomLighting SupplyFLUKE-117214.991In StockFluke214.99 @ 1
thumbzoomCarlton Bates Company09596932420219.991In StockFLUKE219.99 @ 1
thumbzoomZoroG0296484222.9911137Fluke1.55222.99 @ 1
thumbzoomWalker IndustrialFLUKE-117224.991In StockFluke224.99 @ 1
thumbzoomRadwellFLUKE117227.01In StockFLUKE3.0227.0 @ 1
thumbzoomCole-Parmer2601632227.691In StockFluke227.69 @ 1
thumbzoomktool.netFLUKE-117228.71In StockFluke228.7 @ 1
orvac.com241020238.991In StockFluke238.99 @ 1
thumbzoomunbeatablesale.comMED45521240.951In StockFLUKE240.95 @ 1
thumbzoomPlatt.com0680918253.791150Fluke253.79 @ 1
thumbzoomkiesub.comFLUKE-117253.791In StockFLUKE253.79 @ 1
CDW1281577258.99123Fluke Industrial258.99 @ 1
thumbzoomNewark83K1721261.0157FLUKE261.0 @ 1
Transcat117-VIP265.991In StockFLUKE265.99 @ 1
thumbzoomAll-SpecFLUKE-117-19816265.991In StockFluke265.99 @ 1
Digi-Key1506333265.99128Fluke Electronics265.99 @ 1
thumbzoomjensentools.com16196.1267.891527Fluke267.89 @ 1
thumbzoomipcstore.com6_FLUKE-117_1268.01In StockFLUKE NETWORKS268.0 @ 1
thumbzoomGalcoFLUKE-117-FLKE278.18110Fluke1.565278.18 @ 1
thumbzoomprimebuy.comFLUKE-117281.991In StockFluke281.99 @ 1
thumbzoomtoolschest.comMED45521281.991In StockFluke281.99 @ 1
cbtcompany.comFLUKE-117281.991In StockFluke281.99 @ 1
thumbzoomMarkertekFLK-117281.991In StockFluke Electronics281.99 @ 1
thumbzoomcrescentelectric.com147879281.9919Fluke281.99 @ 1
us.rs-online.com70145624281.991103Fluke281.99 @ 1
thumbzoomelectricalparts.comFLUKE-117284.2448110Fluke284.2448 @ 1
altex.comFLUKE-117289.951In StockFluke289.95 @ 1
thumbzoomsimsupply.comCU-3147414A32311.281In StockFluke311.28 @ 1
thumbzoomGlobal IndustrialWBM1502136312.951In StockFluke Electronics312.95 @ 1
thumbzoomElliott Electric117316.691In StockFluke1.7196316.69 @ 1
thumbzoomsustainablesupply.comC1755428318.831In StockFluke1.55318.83 @ 1
thumbzoomNational Supply Network52435369327.251In StockFluke327.25 @ 1
thumbzoomfirefold.comFLUKE-117329.991In StockFluke329.99 @ 1
Graybar25079181331.5761In StockFluke331.576 @ 1
thumbzoomgrovesindustrial.comFLK 117343.081In StockFluke0.5343.08 @ 1
thumbzoomUnited Electric67638347.42127Fluke347.42 @ 1
