Marathon Electric GT1201

B08KQJHY44

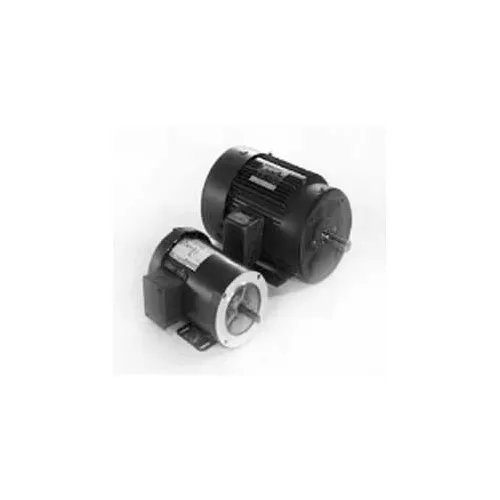

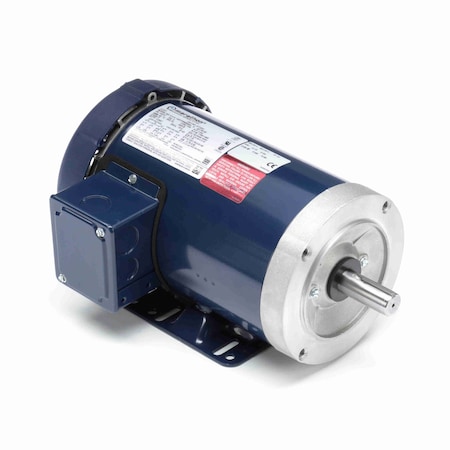

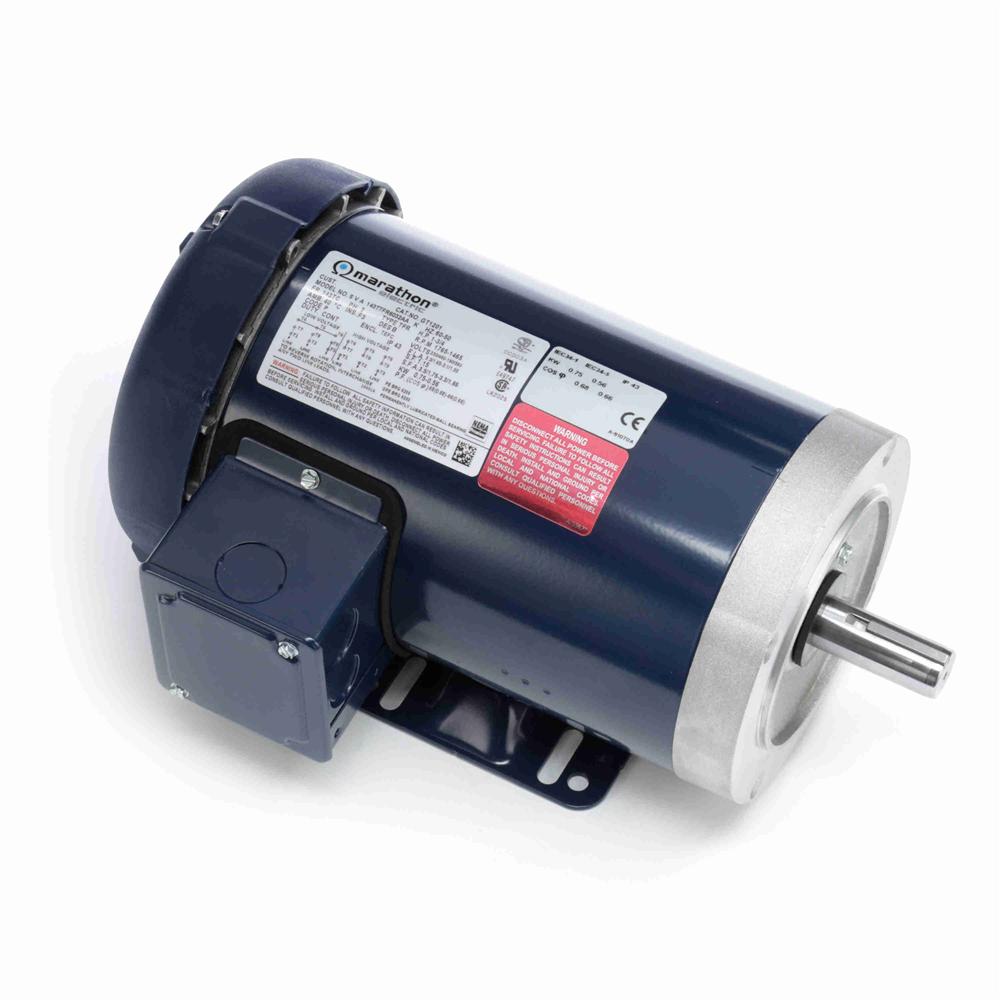

Marathon Electric GT1201 General Purpose Motor - 3 ph, 1 hp, 1800 rpm, 230/460 V, 143TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Rigid Base Mount

Marathon Electric GT1201 General Purpose Motor - 3 ph, 1 hp, 1800 rpm, 230/460 V, 143TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Rigid Base Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.143TTFR6032
Amps3.3/1.65, 3.3/1.7
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension13.87 (in.)
Catalog NumberGT1201
CEY
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
duty / condition type:Inverter Duty
Duty CycleContinuous
Efficiency0.855
Efficiency %85.5 %
Electrical TypeSquirrel Cage Induction.
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame143TC
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:143TC
Frame Type143TC
Frequency50 Hz, 60 Hz, 60/50
frequency rating:60 Hz
full load current:3.30 / 1.65 A
full load efficiency:85.50 %
Gross Weight41.425 lbs
Horsepower1 hp
HP1
Hz60
Insulation ClassF
insulation class:F
IP Code43
ip rating:43
Item NumberGT1201
Kilowatts0.75 kW
KVA CodeP
ManufacturerMarathon Electric
Manufacturer Model #143TTFR6032
Manufacturer Part Number143TTFR6032
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor horsepower:1.00 hp, 1 hp
Motor OrientationHorizontal
motor phase:3 ph
Motor Shell Length8.56"
motor supply voltage:230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid, Rigid Base
mounting type:Rigid Base
NEMA Frame143TC
Net Weight41.43 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length13.87 ", 13.87"
overall length (c-dimen.13.87 in
Phase3
Product CategoryGeneral Purpose NEMA Ge.
Product TypeThree Phase
RotationReversible
RPM1700 - 1800, 1765, 1,76.
RPM (Nameplate)1765
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.15
service factor:1.15
Shaft Diameter7/8 (in.), 0.88 ", 7/8"
shaft diameter:0.88 in
Shaft Extension2.12 (in.)
Shaft Length2.12"
Shaft TypeT
Ship Weight59 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1800 rpm
Type of Overload Protec.No
ULRecognized
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230, 460, 230/460
weight:42 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comGT1201216.01In StockMARATHON216.0 @ 1
thumbzoomapexindustrialautomation.comGT1201302.45141Marathon302.45 @ 1
thumbzoomMRO Supply2268094312.051In StockMarathon Electric312.05 @ 1
AmazonTPB006KM7KO6327.681In Stock2Marathon Electric327.68 @ 1
AmazonB006KM7KO6327.691In Stock42Marathon Electric327.69 @ 1
thumbzoomGalcoGT1201-MARA337.011In StockMarathon Electric41.43337.01 @ 1
thumbzoomDreisilkerMA-RBC-GT1201346.931In StockMarathon346.93 @ 1
thumbzoommotionindustries.com04869921349.191In StockMarathon Electric349.19 @ 1
us.rs-online.com72649910349.651In StockMarathon Motors349.65 @ 1
thumbzoomemotorpro.comGT1201370.041In StockMarathon59.0370.04 @ 1
thumbzoomZoroG606604364378.061In StockMarathon378.06 @ 1
thumbzoommidwestapplianceparts.comGT1201-MT-P395.691In StockMarathon395.69 @ 1
thumbzoomNational Supply NetworkB871400403.281In StockMARATHON MOTORS403.28 @ 1
thumbzoomGlobal IndustrialWBB871400413.951In StockMarathon Motors413.95 @ 1
industrialmotors.comGT1201812.413MARATHON ELECTRIC812.4 @ 1
