Marathon Electric GT1318

B0196KWGGK

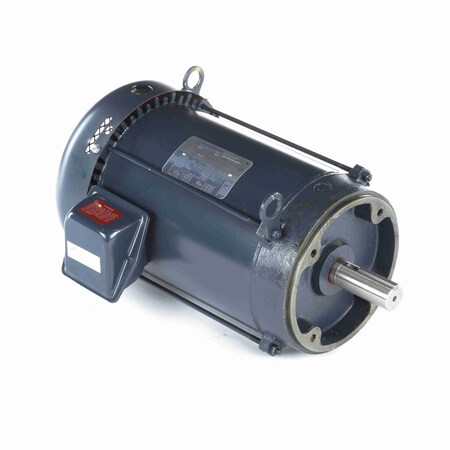

Marathon GT1318 215TC Frame 215TTFBA6004 TEFC General Purpose Motor, 3 Phase, C-Face, Ball Bearing, 10 hp, 3600 rpm, 1 Speed, 208-230/460 VAC

Marathon GT1318 215TC Frame 215TTFBA6004 TEFC General Purpose Motor, 3 Phase, C-Face, Ball Bearing, 10 hp, 3600 rpm, 1 Speed, 208-230/460 VACzoom

Attributes

Key Value
Amps22.8/11.4
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
CompositionRolled Steel
Country of Origin (subj.China
Duty CycleContinuous
Efficiency0.902
Efficiency %90.2 %
EnclosureTotally Enclosed Fan Co.
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame215TC
Frequency50 Hz, 60 Hz
Gross Weight0 lbs
Horsepower10 hp
HP10
Hz60
Insulation ClassF
Item NumberGT1318
Kilowatts7.5 kW
ManufacturerMarathon Electric
Manufacturer Model #215TTFBA6004
Manufacturer Part Number215TTFBA6004
Maximum Ambient Tempera.40? C
MountingFace
Mounting OrientationHorizontal
Mounting TypeRound
NEMA Frame215TC
Net Weight175 lbs
Number of Poles2
Number of Speeds1
Overall Length21.02 ", 21.02"
Phase3
Product TypeThree Phase
RotationReversible
RPM3,540 RPM, 3540
Service Factor1.15
Shaft Diameter1-3/8", 1.38 "
Shaft Length3.38"
Ship Weight175 lbs.
Voltage (AC)230 VAC, 460 VAC
Volts230, 460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcshincorporated.comMGT1318794.521In StockMarathon155.0794.52 @ 1
thumbzoomemotorpro.comGT1318828.181In StockMarathon175.0828.18 @ 1
thumbzoomGalcoGT1318-MARA1198.51In StockMarathon Electric175.01198.5 @ 1
thumbzoomZoroG70415761320.01In StockMarathon1320.0 @ 1
