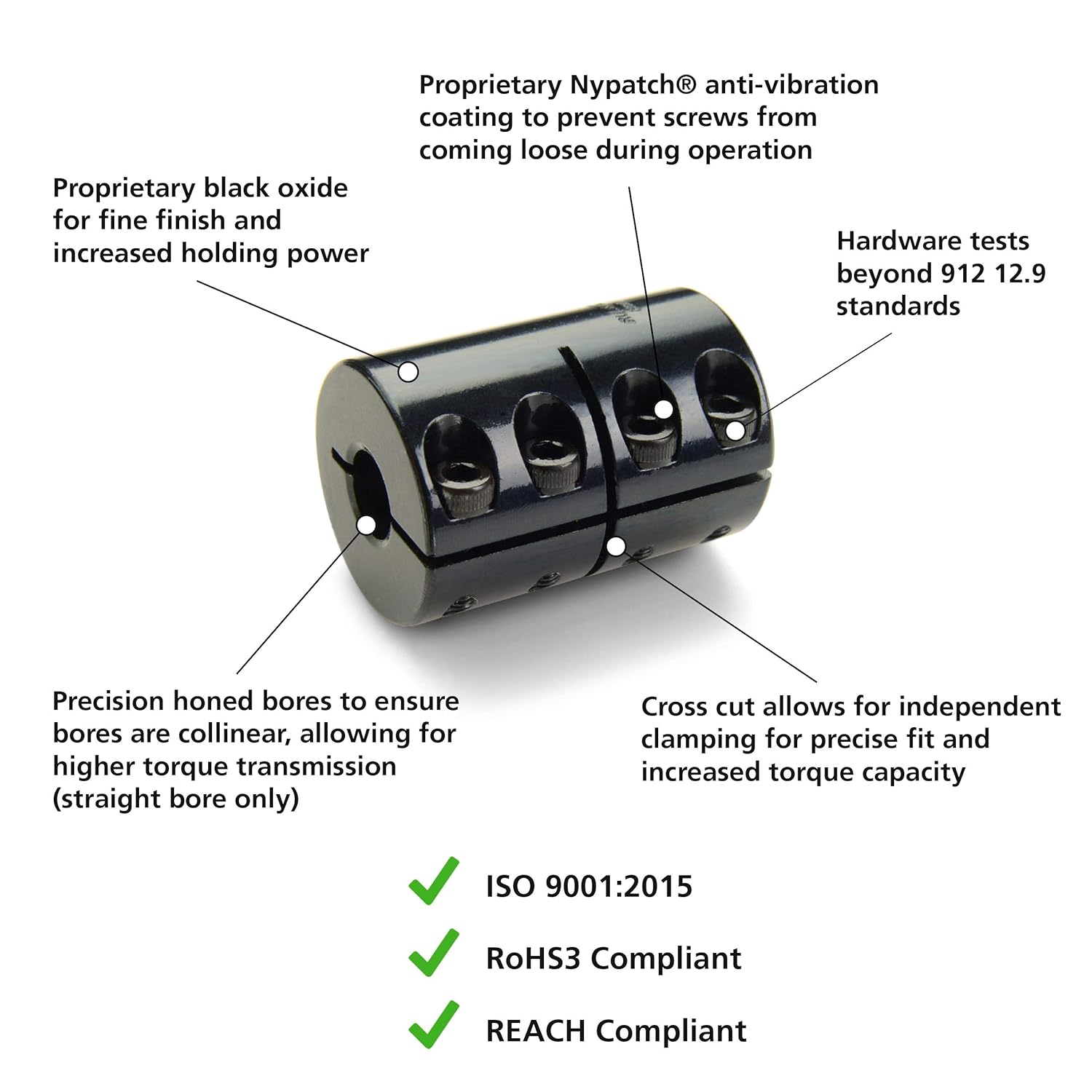

Ruland Manufacturing Co Inc MCLX-3-3-F - Clamp-On Rigid Coupling - MCLX Series, Black Oxide, 1215 Lead-Free Steel, Bore - Side 1: 3 mm, Bore - Side 2: 3 mm

Ruland Manufacturing Co Inc MCLX-3-3-F - Clamp-On Rigid Coupling - MCLX Series, Black Oxide, 1215 Lead-Free Steel, Bore - Side 1: 3 mm, Bore - Side 2: 3 mmzoom

Attributes

Key Value
ApplicationFor Applications where .
B1 Max Shaft Penetration11.0 mm
B2 Max Shaft Penetration11.0 mm
Bore (B1)3 mm
Bore Dia.3 mm
Bore Tolerance+0.050 mm / +0.012 mm
CategoryHardware, Fasteners, Ac.
Clearance Dia.15.0 mm
Clearance Dia. (mm)15.00
Clearance Diameter (C) .15.0 mm
Country of OriginUSA
Country of Origin (subj.United States
Description3MMX3MM STEEL RIGID COU.
DesignFour Vibration Resistan.
Digi-Key Part Number3188-MCLX-3-3-F-ND
Finishblack oxide
Finish SpecificationHot Process Black Oxide.
Forged Clamp ScrewM2
Full Bearing Support Re.No
Hex Wrench Size1.5 mm
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Length (L)22 mm
Machined FromBar Stock
ManufacturerRuland Manufacturing
Manufacturer Product Nu.MCLX-3-3-F
MaterialBlack Oxide 1215 Lead F.
Material - Couplings1215 Lead Free Steel
Material Specification1215 Carbon Steel Bar
Max. Torque60 in-lb
Max. Torque (In.-Lbs.)60
Maximum Speed4,000 RPM
MfrRuland Manufacturing
Moment of Inertia7.571 x 10
Note 1Performance ratings are.
Number of Screws4 ea
Outer Diameter (OD)15 mm
Outside Dia.15 mm
Overall Length22 mm
PackageBag
Precision Honed Bores?Yes
Product StatusActive
ProvidesExtra Holding Power for.
Rated Torque1.47 Nm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw Finishblack oxide
Screw Location (R)4.6 mm
Screw MaterialAlloy Steel
Screw SizeM2
Screw Size (mm)M2
Seating Torque0.6 Nm
Series-
Shaft Locking Type - Co.1 Piece Clamp
Small Bore (B2)3 mm
Specifications0.591" (15.00mm) Outer .
System of MeasurementMetric
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeRigid Coupling, One Pie.
UNSPC31163009
UPC634529095096
Weight (lbs)0.057000
With Keyway / Without K.Without Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG350933526.01In Stock10Ruland0.0626.0 @ 1
thumbzoomAmazonB0060M1ZSS29.191In StockRuland29.19 @ 1
thumbzoomcbtcompany.comMCLX-3-3-F30.241In StockRULAND MANUFACTURING30.24 @ 1
thumbzoomRulandMCLX-3-3-F34.671In StockRuland0.05734.67 @ 1
thumbzoomDigi-Key1359353461.5613Ruland Manufacturing61.56 @ 1
thumbzoomRaptor SuppliesAB8ZUF67.40972551In StockRULAND MANUFACTURING67.4097255 @ 1
motionindustries.com04805166105.61In StockRuland Manufacturing Co Inc105.6 @ 1
